PEC16-4215F-S0024 - Bourns

Description: BOURNS - PEC16-4215F-S0024 - INCREMENTAL ENCODER, 2CH, 100RPM

Download PEC16-4215F-S0024 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

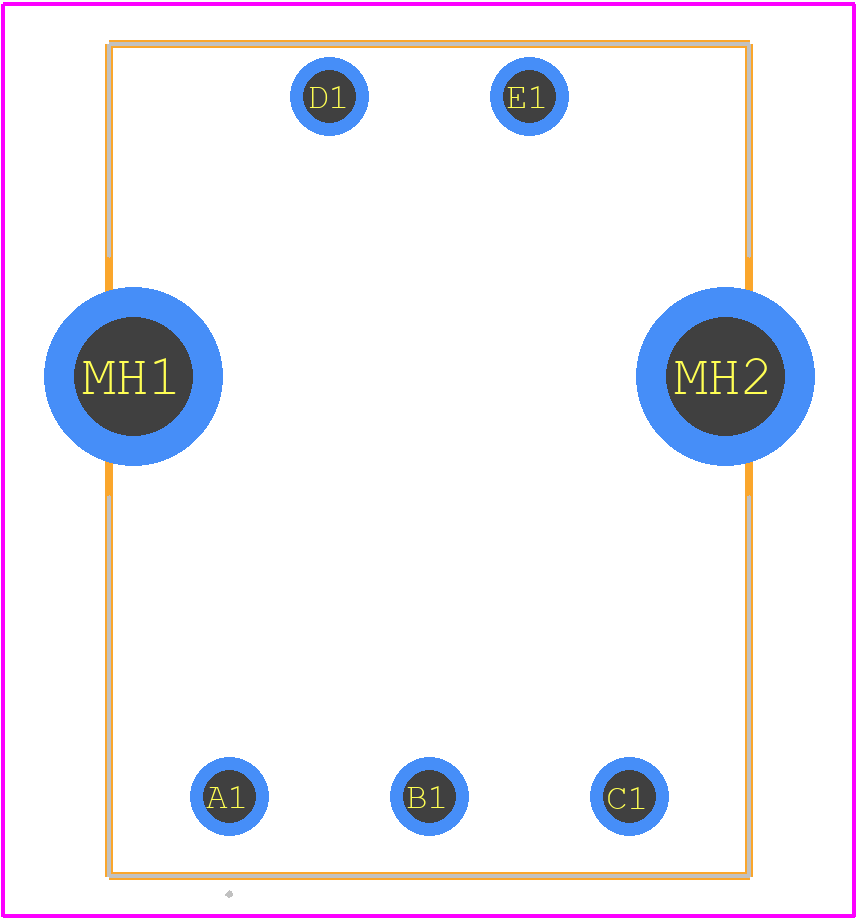

PCB Footprints
PEC16-4215F-S0024 - Bourns PCB footprint - Other - Other - PEC16-4120F-S0012-1
click to zoom
3D Models
PEC16-4215F-S0024 - Bourns  - 3D model - Other - PEC16-4120F-S0012-1
click to zoom

PEC16-4215F-S0024 Details

  • Manufacturer Part Number:

    PEC16-4215F-S0024

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, COMPACT PACKAGE-3

  • Country Of Origin:

    Mainland China

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Bourns Inc

  • Configuration:

    SINGLE, 2 CHANNELS

  • Number of Functions:

    1

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    ROTARY POSITION ENCODER
