PEL12T-4226F-S1024 - Bourns

Description: Optical Encoder Rotary Incremental Flat 0.69oz.in Straight Digital Square Wave Through Hole PC Pin 6CPR

Download PEL12T-4226F-S1024 Model

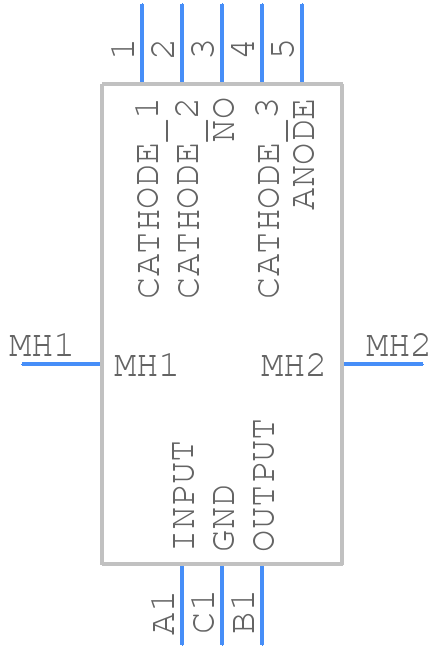

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

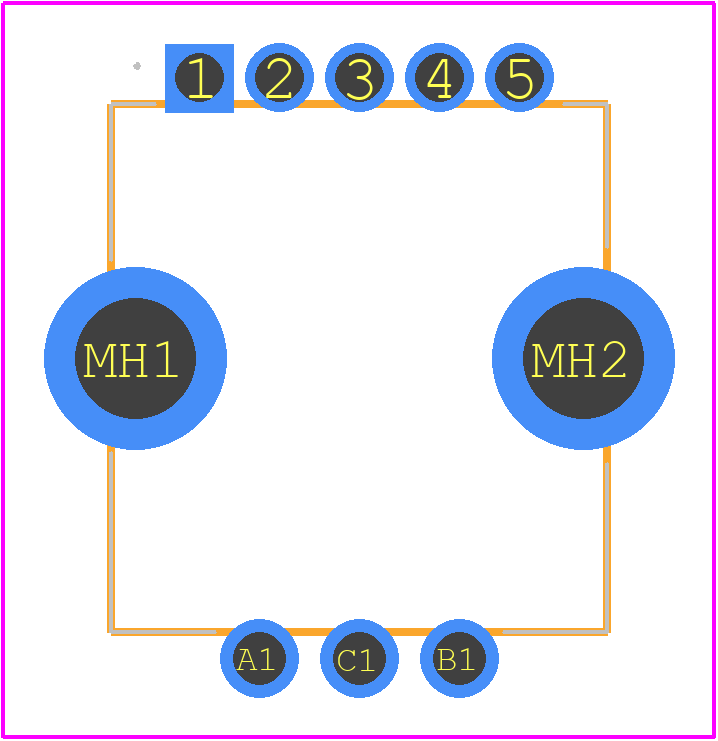

PCB Footprints
PEL12T-4226F-S1024 - Bourns PCB footprint - Other - Other - PEL12T-4226F-S1024-1
click to zoom
3D Models
PEL12T-4226F-S1024 - Bourns  - 3D model - Other - PEL12T-4226F-S1024-1
click to zoom

PEL12T-4226F-S1024 Details

  • Manufacturer Part Number:

    PEL12T-4226F-S1024

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Bourns Inc

  • Additional Feature:

    HIGH RELIABILITY

  • Configuration:

    SINGLE, 2 CHANNELS

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Optoelectronic Device Type:

    ROTARY POSITION ENCODER

  • Surface Mount:

    NO
