PES-04-02-L-VT footprint, schematic symbol and 3D model by SAMTEC

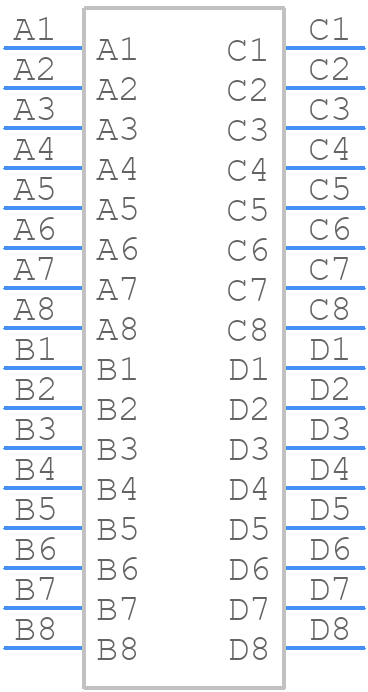

Symbol

click to zoom

PCB Footprints

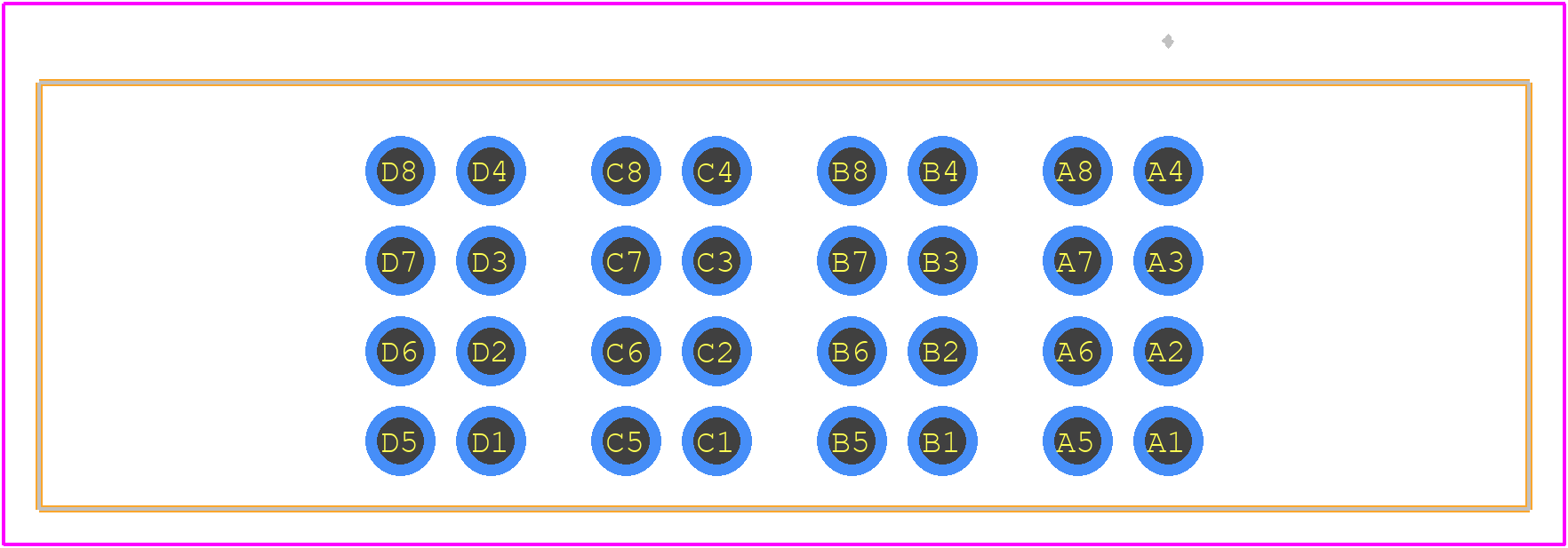

PES-04-02-L-VT - SAMTEC PCB footprint - Other - Other - PES-04-02-L-VT-1

click to zoom

3D Models

PES-04-02-L-VT - SAMTEC - 3D model - Other - PES-04-02-L-VT-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PES-04-02-L-VT
Part Number PES-04-02-L-VT
Manufacturer SAMTEC
Pin Count 32
Part Category Connector
Package Category Other
Footprint Name Other - PES-04-02-L-VT-1
Released Date Apr 28, 2020
Pinout / Pin List Click Here (Member Only)

Trust Checks

Expert Contribution

System Verified

Community Approved

PES-04-02-L-VT Overview

Use the download button to access the PES-04-02-L-VT schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PES-0, or try a keyword search, such as Power Connectors
