Part Image

PES1-S12-S3-M-TR - CUI Inc.

Description: Isolated DC/DC Converters Isolated Board Mount DC-DC Cnvrt

Download PES1-S12-S3-M-TR Model

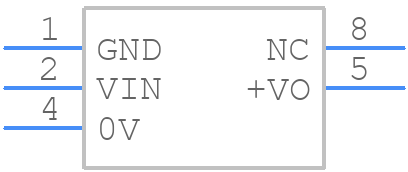

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

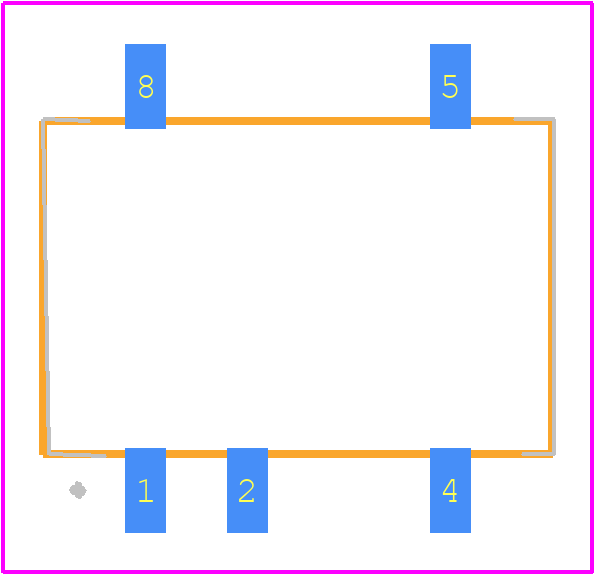

PES1-S12-S3-M-TR - CUI Inc. PCB footprint - Other - Other - PES1-S12-S3-M-TR-1
click to zoom
3D Models
PES1-S12-S3-M-TR - CUI Inc.  - 3D model - Other - PES1-S12-S3-M-TR-1
click to zoom

PES1-S12-S3-M-TR Details

  • Manufacturer Part Number:

    PES1-S12-S3-M-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    CUI Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC UNREGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    13.2 V

  • Input Voltage-Min:

    10.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDMA-G5

  • Length:

    12.7 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    7.5 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    1 W

  • Trim/Adjustable Output:

    NO

  • Width:

    8.3 mm

PES1-S12-S3-M-TR Frequently Asked Questions (FAQs)

  • CUI recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, a thermal interface material (TIM) with a thermal conductivity of 1W/m-K or higher is suggested to improve heat transfer between the module and the heat sink.
  • To ensure reliability and longevity, operate the module within the recommended temperature range (–40°C to +85°C). Implement proper thermal management, and ensure the module is not subjected to excessive mechanical stress or vibration. Regularly inspect the module for signs of wear or damage, and replace it if necessary.
  • The maximum allowable voltage deviation for the input voltage is ±10% of the nominal input voltage. Exceeding this deviation may affect the module's performance, reliability, or even cause damage.
  • Yes, the PES1-S12-S3-M-TR can be used in a redundant or parallel configuration to achieve higher power output or redundancy. However, it is essential to ensure proper synchronization and control of the modules to prevent damage or instability.
  • The typical efficiency of the PES1-S12-S3-M-TR is around 85-90% at full load and 25°C ambient temperature. Efficiency may vary depending on the load condition, temperature, and input voltage. Refer to the datasheet's efficiency curves for more information.
