PES1-S5-D5-M-TR - CUI Inc.

Description: Isolated DC/DC Converters - SMD dc-dc isolated, 1 W, 4.5~5.5 Vdc input, + / -5 Vdc, + / -100 mA, dual unregulated output, SMT, T&R pkg

Download PES1-S5-D5-M-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

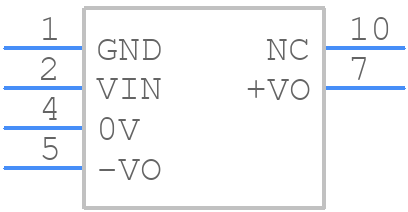

Symbol
PES1-S5-D5-M-TR - CUI Inc. - PCB symbol
click to zoom

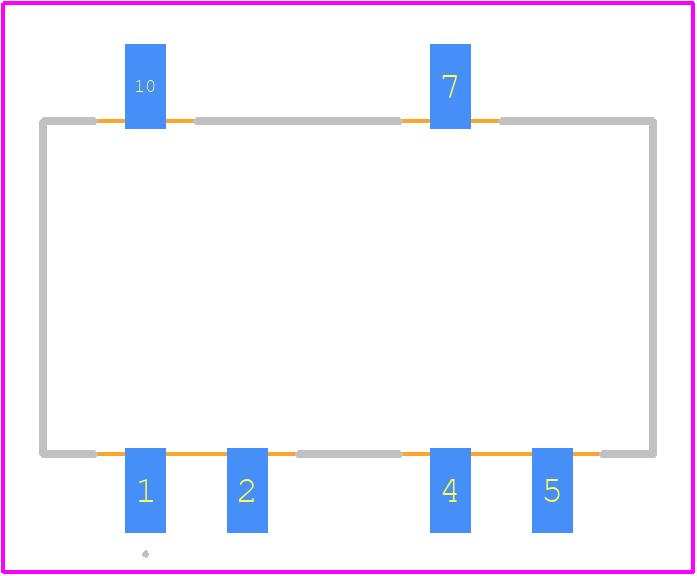

PCB Footprints
PES1-S5-D5-M-TR - CUI Inc. PCB footprint - Other - Other - PES1-S5-D5-M-TR-1
click to zoom
3D Models
PES1-S5-D5-M-TR - CUI Inc. - 3D model - Other - PES1-S5-D5-M-TR-1
click to zoom

PES1-S5-D5-M-TR Details

  • Manufacturer Part Number:

    PES1-S5-D5-M-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    CUI Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC UNREGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDMA-G6

  • Length:

    15.24 mm

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    7.5 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    1 W

  • Trim/Adjustable Output:

    NO

  • Width:

    8.3 mm

PES1-S5-D5-M-TR Frequently Asked Questions (FAQs)

  • The operating temperature range for the PES1-S5-D5-M-TR is -40°C to 85°C, with a storage temperature range of -40°C to 125°C.
  • Yes, the PES1-S5-D5-M-TR is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
  • CUI Inc recommends a minimum PCB spacing of 1.5 mm and a minimum pad size of 1.3 mm x 1.3 mm for the PES1-S5-D5-M-TR. A recommended PCB layout is available in the datasheet or upon request.
  • Yes, the PES1-S5-D5-M-TR is designed to withstand high-vibration environments, with a vibration resistance of 10 G peak acceleration (10-2000 Hz).
  • Yes, the PES1-S5-D5-M-TR is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for environmental sustainability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PES1-S5-D5-M-TR Overview

Use the download button to access the PES1-S5-D5-M-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PES1-, or try a keyword search, such as Power Supply Modules
