PESC-01-40-01-01-L-VT footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

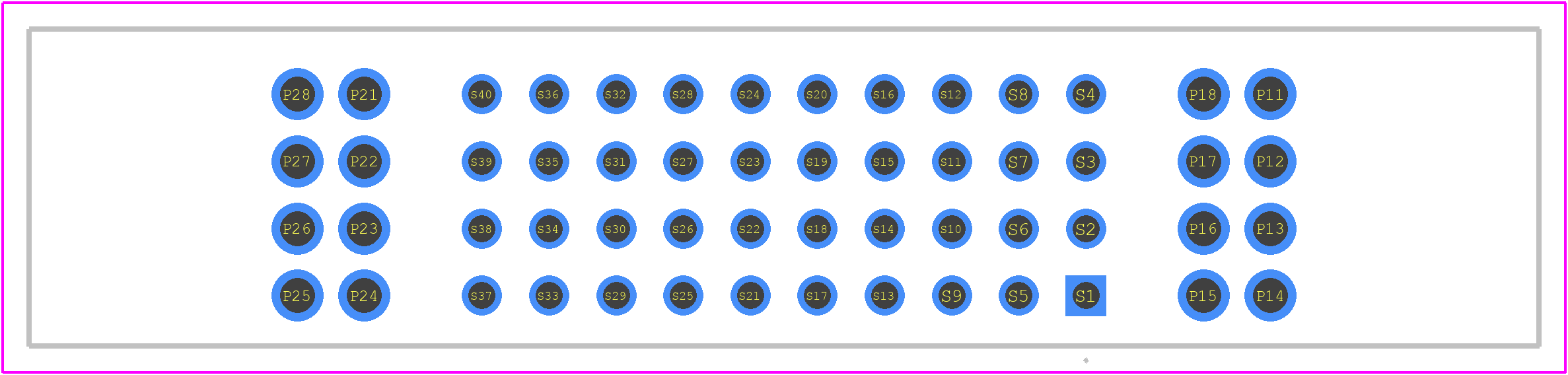

PESC-01-40-01-01-L-VT - SAMTEC PCB footprint - Other - Other - PESC-01-40-01-01-L-VT-2

click to zoom

3D Models

PESC-01-40-01-01-L-VT - SAMTEC - 3D model - Other - PESC-01-40-01-01-L-VT-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PESC-01-40-01-01-L-VT
Part Number PESC-01-40-01-01-L-VT
Manufacturer SAMTEC
Pin Count 56
Part Category Connector
Package Category Other
Footprint Name Other - PESC-01-40-01-01-L-VT-2
Released Date Oct 13, 2025
Last Modified Date Oct 13, 2025 7:38 AM UTC
Pinout / Pin List Click Here (Member Only)

PESC-01-40-01-01-L-VT Details

Manufacturer Part Number:
PESC-01-40-01-01-L-VT
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 3 Days
Manufacturer:
Samtec Inc
YTEOL:
10
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (10) OVER NICKEL (50)
Contact Finish Termination:
Matte Tin (Sn)
Contact Gender:
FEMALE
Contact Material:
COPPER ALLOY
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
YES
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
4
Option:
GENERAL PURPOSE
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
42

PESC-01-40-01-01-L-VT Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the PESC-01-40-01-01-L-VT connector is designed to withstand high-vibration environments. Samtec recommends following their vibration testing guidelines to ensure reliable performance.
The maximum operating temperature for the PESC-01-40-01-01-L-VT connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's performance at temperatures above 100°C (212°F).
The PESC-01-40-01-01-L-VT connector has a moisture-resistant design, but it's not fully waterproof. Samtec recommends applying a conformal coating or potting compound to protect the connector in humid or wet environments.
The recommended mating cycle for the PESC-01-40-01-01-L-VT connector is 500-1000 cycles, depending on the application and environmental conditions. Samtec recommends consulting their application notes for more information.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PESC-01-40-01-01-L-VT Overview

Use the download button to access the PESC-01-40-01-01-L-VT schematic symbol, PCB footprint, and 3D model.
