PESC-01-40-01-01-S-VT footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

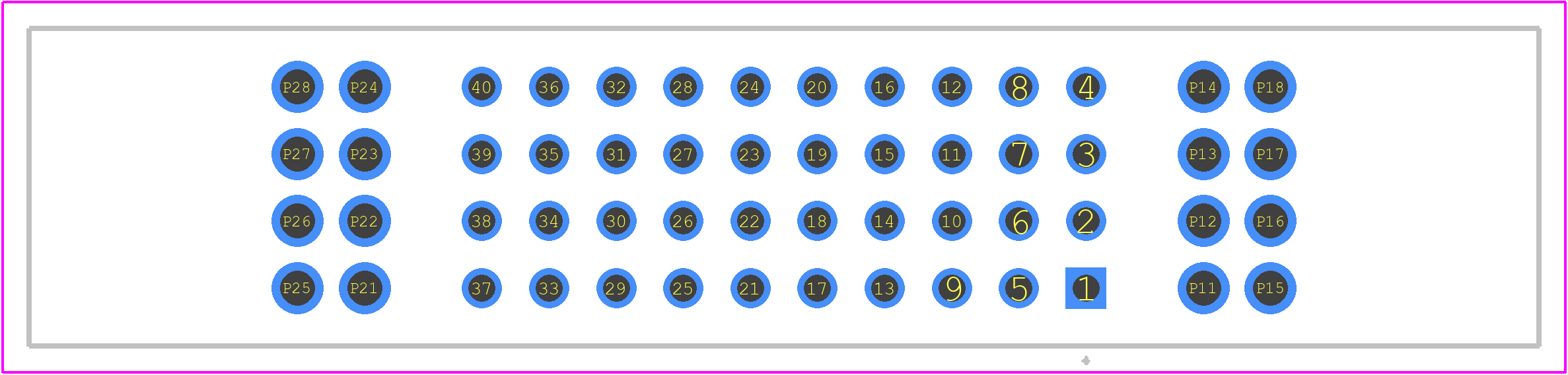

PCB Footprints

PESC-01-40-01-01-S-VT - SAMTEC PCB footprint - Other - Other - PESC-01-40-01-01-S-VT

click to zoom

3D Models

PESC-01-40-01-01-S-VT - SAMTEC - 3D model - Other - PESC-01-40-01-01-S-VT

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PESC-01-40-01-01-S-VT
Part Number PESC-01-40-01-01-S-VT
Manufacturer SAMTEC
Pin Count 56
Part Category Connector
Package Category Other
Footprint Name Other - PESC-01-40-01-01-S-VT
Released Date Oct 7, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PESC-01-40-01-01-S-VT Details

Manufacturer Part Number:
PESC-01-40-01-01-S-VT
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 3 Days
Manufacturer:
Samtec Inc
YTEOL:
9.1
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD
Contact Finish Termination:
Matte Tin (Sn)
Contact Gender:
FEMALE
Contact Material:
COPPER ALLOY
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
YES
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
4
Option:
GENERAL PURPOSE
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
42

PESC-01-40-01-01-S-VT Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the PESC-01-40-01-01-S-VT connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the PESC-01-40-01-01-S-VT connector is 125°C (257°F) according to Samtec's datasheet.
The PESC-01-40-01-01-S-VT connector is not sealed and is not recommended for use in humid or wet environments. Samtec offers other connectors with sealing options for such applications.
The mating cycle life of the PESC-01-40-01-01-S-VT connector is 500 cycles minimum according to Samtec's datasheet.

Trust Checks

Community Provided

System Verified

Community Approved

PESC-01-40-01-01-S-VT Overview

Use the download button to access the PESC-01-40-01-01-S-VT schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PESC-, or try a keyword search, such as Headers and Edge Type Connectors
