PESD12VU1UT,215 - Nexperia

Description: NXP PESD12VU1UT,215 Dual Uni-Directional TVS Diode, 200W peak, 3-Pin TO-236AB

Download PESD12VU1UT,215 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

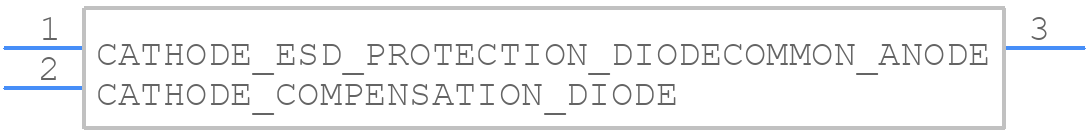

Symbol
PESD12VU1UT,215 - Nexperia - PCB symbol
click to zoom
PCB Footprints
PESD12VU1UT,215 - Nexperia PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - (TO-236AB
click to zoom
3D Models
PESD12VU1UT,215 - Nexperia - 3D model - SOT23 (3-Pin) - (TO-236AB
click to zoom

PESD12VU1UT,215 Details

  • Manufacturer Part Number:

    PESD12VU1UT,215

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TO-236

  • Package Description:

    SOT-23, 3 PIN

  • Pin Count:

    3

  • Manufacturer Package Code:

    SOT23

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    2017-02-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    6

  • Breakdown Voltage-Max:

    16.7 V

  • Breakdown Voltage-Min:

    14.2 V

  • Breakdown Voltage-Nom:

    15.45 V

  • Clamping Voltage-Max:

    39 V

  • Configuration:

    SINGLE, 2 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    TO-236AB

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    200 W

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-60134; IEC-61000-4-2, 4-5; MIL-STD-883

  • Rep Pk Reverse Voltage-Max:

    12 V

  • Reverse Current-Max:

    0.05 µA

  • Reverse Test Voltage:

    12 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

PESD12VU1UT,215 Frequently Asked Questions (FAQs)

  • A good PCB layout for PESD12VU1UT,215 involves keeping the device close to the protected line, using short traces, and minimizing the distance between the device and the protected component. Additionally, a ground plane underneath the device can help to reduce electromagnetic interference (EMI).
  • While the datasheet specifies the device's performance for 100 ns pulses, it can also handle longer surge pulses. However, the device's clamping voltage may increase with longer pulses. It's essential to consult with Nexperia's application engineers to determine the device's behavior for specific use cases.
  • Yes, the PESD12VU1UT,215 is suitable for protecting high-speed data lines. Its low capacitance (typically 0.5 pF) and low clamping voltage ensure minimal signal distortion and attenuation. However, it's crucial to consider the device's impedance and signal integrity in the specific application.
  • The PESD12VU1UT,215 is rated for operation from -40°C to 150°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consult the datasheet and application notes for specific guidance on temperature-related considerations.
  • To ensure proper soldering, follow the recommended soldering profile and guidelines provided in the datasheet. Additionally, use a soldering iron with a temperature-controlled tip, and avoid applying excessive heat or pressure, which can damage the device.
