PESD15VU1UT,215 - Nexperia

Description: PESD15VU1UT - Ultra low capacitance ESD protection diode in SOT23 package

Download PESD15VU1UT,215 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

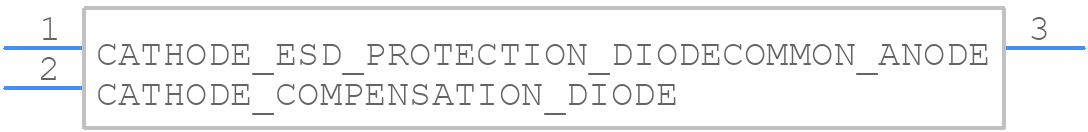

Symbol
PESD15VU1UT,215 - Nexperia - PCB symbol
click to zoom
PCB Footprints
PESD15VU1UT,215 - Nexperia PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - SOT23 (TO-236AB) 2
click to zoom
3D Models
PESD15VU1UT,215 - Nexperia - 3D model - SOT23 (3-Pin) - SOT23 (TO-236AB) 2
click to zoom

PESD15VU1UT,215 Details

  • Manufacturer Part Number:

    PESD15VU1UT,215

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TO-236

  • Package Description:

    SOT-23, 3 PIN

  • Pin Count:

    3

  • Manufacturer Package Code:

    SOT23

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    2017-02-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    6

  • Breakdown Voltage-Max:

    20.3 V

  • Breakdown Voltage-Min:

    17.1 V

  • Breakdown Voltage-Nom:

    18.7 V

  • Clamping Voltage-Max:

    53 V

  • Configuration:

    COMMON ANODE, 2 ELEMENTS, 2 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    TO-236AB

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    200 W

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-60134; IEC-61000-4-2, 4-5; MIL-STD-883

  • Rep Pk Reverse Voltage-Max:

    15 V

  • Reverse Current-Max:

    0.05 µA

  • Reverse Test Voltage:

    15 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

PESD15VU1UT,215 Frequently Asked Questions (FAQs)

  • A good PCB layout for PESD15VU1UT,215 involves keeping the device close to the protected IC, using short and wide traces, and minimizing the distance between the device and the protected IC. Additionally, it's recommended to use a ground plane and to avoid routing signals under the device.
  • The PESD15VU1UT,215 is designed to handle ESD strikes during power-on or power-off. The device's internal circuitry is designed to absorb and dissipate the ESD energy, protecting the downstream circuitry from damage.
  • Yes, you can use multiple PESD15VU1UT,215 devices in parallel to increase the surge current rating. However, it's essential to ensure that the devices are properly matched and that the PCB layout is designed to minimize inductance and resistance between the devices.
  • The maximum operating temperature range for the PESD15VU1UT,215 is -40°C to 125°C. However, it's recommended to operate the device within the specified temperature range to ensure optimal performance and reliability.
  • The PESD15VU1UT,215 is designed to have minimal impact on signal integrity. The device's internal capacitance is minimized, and the device is optimized for high-frequency signals. However, it's still important to consider the device's capacitance and inductance when designing the PCB layout.
