PESD1USB30Z - Nexperia

Description: PESD1USB30 - ESD protection for differential data lines

Download PESD1USB30Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

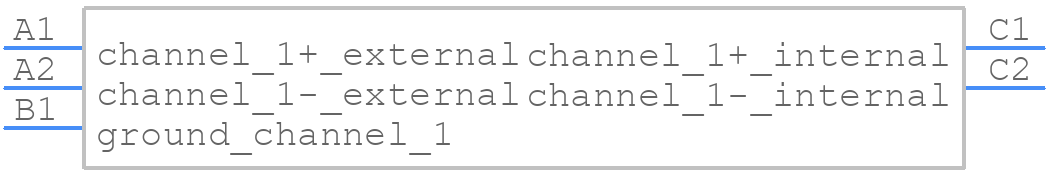

Symbol
PESD1USB30Z - Nexperia - PCB symbol
click to zoom
PCB Footprints
PESD1USB30Z - Nexperia PCB footprint - Other - Other - WLCSP5_2-1-2
click to zoom
3D Models
PESD1USB30Z - Nexperia - 3D model - Other - WLCSP5_2-1-2
click to zoom

PESD1USB30Z Details

  • Manufacturer Part Number:

    PESD1USB30Z

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CSP

  • Pin Count:

    5

  • Manufacturer Package Code:

    WLCSP5_2-1-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Approvals:

    IEC

  • Capacitance:

    0.45 µF

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • Length:

    1.22 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Rated Voltage:

    5 V

  • Width:

    0.82 mm

PESD1USB30Z Frequently Asked Questions (FAQs)

  • The PESD1USB30Z can withstand a surge current of up to 3A, as per the IEC 61000-4-5 standard.
  • The PESD1USB30Z protects against ESD by using a combination of voltage clamping and current limiting to prevent damage to the downstream circuitry.
  • The response time of the PESD1USB30Z to an ESD event is typically in the range of 1-2 nanoseconds.
  • Yes, the PESD1USB30Z is designed to support high-speed USB applications up to 480 Mbps.
  • Yes, the PESD1USB30Z is compatible with both USB 3.0 and USB 2.0 standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PESD1USB30Z Overview

Use the download button to access the PESD1USB30Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PESD1, or try a keyword search, such as Data Line Filters

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
