PESD24VU1UT,215 - Nexperia

Description: Ultra low capacitance ESD protection diode in SOT23 package

Download PESD24VU1UT,215 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

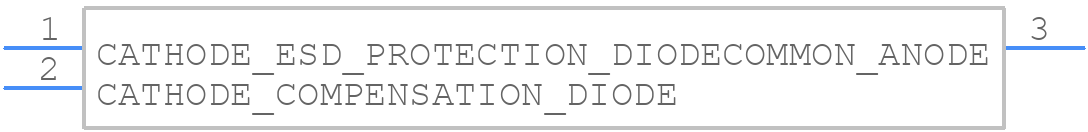

Symbol
PESD24VU1UT,215 - Nexperia - PCB symbol
click to zoom
PCB Footprints
PESD24VU1UT,215 - Nexperia PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - SOT -23
click to zoom
3D Models
PESD24VU1UT,215 - Nexperia - 3D model - SOT23 (3-Pin) - SOT -23
click to zoom

PESD24VU1UT,215 Details

  • Manufacturer Part Number:

    PESD24VU1UT,215

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TO-236

  • Package Description:

    SOT-23, 3 PIN

  • Pin Count:

    3

  • Manufacturer Package Code:

    SOT23

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    2017-02-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    6

  • Breakdown Voltage-Max:

    30.3 V

  • Breakdown Voltage-Min:

    25.4 V

  • Breakdown Voltage-Nom:

    27.85 V

  • Clamping Voltage-Max:

    76 V

  • Configuration:

    SINGLE, 2 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    TO-236AB

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    200 W

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-60134; IEC-61000-4-2, 4-5; MIL-STD-883

  • Rep Pk Reverse Voltage-Max:

    24 V

  • Reverse Current-Max:

    0.05 µA

  • Reverse Test Voltage:

    24 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

PESD24VU1UT,215 Frequently Asked Questions (FAQs)

  • A good PCB layout for PESD24VU1UT,215 involves keeping the device close to the protected IC, using short and wide traces, and minimizing the distance between the device and the protected IC. Additionally, it's recommended to use a solid ground plane and to avoid routing signals under the device.
  • The PESD24VU1UT,215 is designed to handle ESD strikes during power-on or power-off. The device's internal circuitry is designed to absorb and dissipate the ESD energy, protecting the downstream circuitry from damage.
  • No, it's not recommended to use multiple PESD24VU1UT,215 devices in parallel to increase the surge current rating. The device is designed to operate individually, and paralleling multiple devices may lead to uneven current sharing and reduced reliability.
  • The maximum operating temperature range for the PESD24VU1UT,215 is -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures, so it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
  • Yes, the PESD24VU1UT,215 is designed to handle high-speed signals up to 1 GHz. The device's low capacitance and high bandwidth make it suitable for high-speed applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PESD24VU1UT,215 Overview

Use the download button to access the PESD24VU1UT,215 schematic symbol, PCB footprint, and 3D model.
