PESD2USB30Z - Nexperia

Description: PESD2USB30 - ESD protection for differential data lines

Download PESD2USB30Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

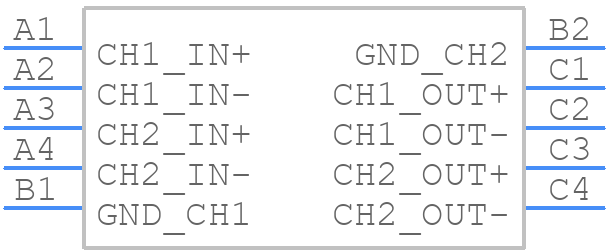

PESD2USB30Z - Nexperia - PCB symbol
click to zoom
PCB Footprints
PESD2USB30Z - Nexperia PCB footprint - Other - Other - WLCSP10_4-2-4
click to zoom
3D Models
PESD2USB30Z - Nexperia - 3D model - Other - WLCSP10_4-2-4
click to zoom

PESD2USB30Z Details

  • Manufacturer Part Number:

    PESD2USB30Z

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    WLCSP10_4-2-4

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Approvals:

    IEC

  • Capacitance:

    0.45 µF

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • Length:

    1.62 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Rated Voltage:

    5 V

  • Width:

    1.22 mm

PESD2USB30Z Frequently Asked Questions (FAQs)

  • The PESD2USB30Z can withstand a surge current of up to 3A, as per the IEC 61000-4-5 standard.
  • The PESD2USB30Z uses a combination of TVS diodes and Zener diodes to protect against ESD and overvoltage. The TVS diodes absorb the ESD pulse, while the Zener diodes clamp the voltage to a safe level.
  • The PESD2USB30Z can operate safely in the temperature range of -40°C to 125°C.
  • Yes, the PESD2USB30Z is compatible with both USB 3.0 and USB 2.0 standards.
  • The capacitance of the PESD2USB30Z is typically around 10pF, which is low enough to not affect the signal integrity of high-speed USB signals.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PESD2USB30Z Overview

Use the download button to access the PESD2USB30Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PESD2, or try a keyword search, such as Data Line Filters

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
