PESD2USB3SZ - Nexperia

Description: PESDxUSB3S - ESD protection for differential data lines, WLCSP10 package

Download PESD2USB3SZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

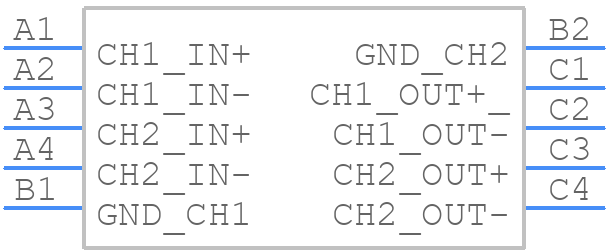

Symbol
PESD2USB3SZ - Nexperia - PCB symbol
click to zoom
PCB Footprints
PESD2USB3SZ - Nexperia PCB footprint - Other - Other - PESD2USB3SZ
click to zoom
3D Models
PESD2USB3SZ - Nexperia - 3D model - Other - PESD2USB3SZ
click to zoom

PESD2USB3SZ Details

  • Manufacturer Part Number:

    PESD2USB3SZ

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP10, 10 PIN

  • Manufacturer Package Code:

    WLCSP10_4-2-4

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7.59

  • Approvals:

    IEC

  • Capacitance:

    0.45 µF

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • Length:

    1.62 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Rated Current:

    8 A

  • Rated Voltage:

    5 V

  • Width:

    1.22 mm

PESD2USB3SZ Frequently Asked Questions (FAQs)

  • The PESD2USB3SZ can withstand a maximum surge current of 3A according to IEC 61000-4-5.
  • The PESD2USB3SZ protects against ESD and overvoltage by using a combination of TVS diodes and resistors to clamp and divert excessive voltage and current away from the protected circuit.
  • The maximum operating temperature range for the PESD2USB3SZ is -40°C to 125°C.
  • Yes, the PESD2USB3SZ is compatible with both USB 3.0 and USB 2.0 standards.
  • The typical response time of the PESD2USB3SZ to an ESD event is less than 1 ns.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PESD2USB3SZ Overview

Use the download button to access the PESD2USB3SZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PESD2, or try a keyword search, such as Data Line Filters

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
