PESD3USB30Z - Nexperia

Description: PESD3USB30 - ESD protection for differential data lines

Download PESD3USB30Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

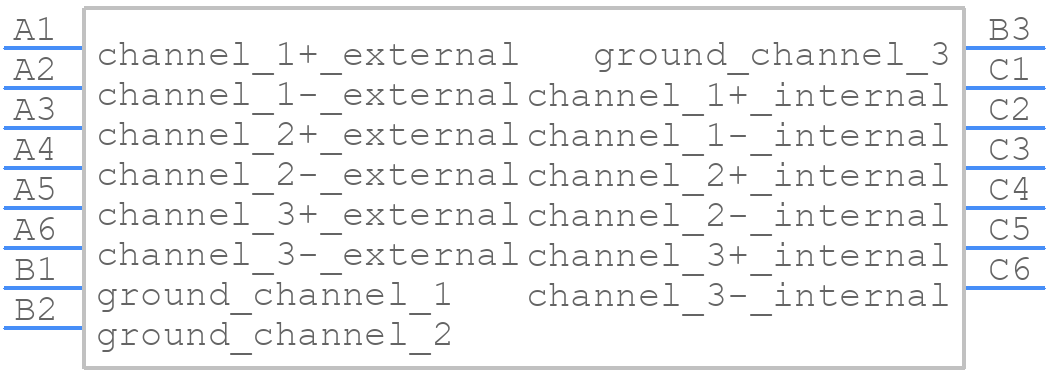

PESD3USB30Z - Nexperia - PCB symbol
click to zoom
PCB Footprints
PESD3USB30Z - Nexperia PCB footprint - Other - Other - WLCSP15_6-3-6
click to zoom
3D Models
PESD3USB30Z - Nexperia - 3D model - Other - WLCSP15_6-3-6
click to zoom

PESD3USB30Z Details

  • Manufacturer Part Number:

    PESD3USB30Z

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    WLCSP15_6-3-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Capacitance:

    0.45 µF

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • Length:

    2.42 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    3

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Rated Voltage:

    5 V

  • Screening Level:

    IEC 61000-4-2,4-5; IEC-60134

  • Width:

    1.22 mm

PESD3USB30Z Frequently Asked Questions (FAQs)

  • The PESD3USB30Z can withstand a maximum surge current of 3A according to the IEC 61000-4-5 standard.
  • The PESD3USB30Z protects against ESD using a combination of TVS (Transient Voltage Suppressor) and ESD protection diodes, which can absorb and dissipate ESD pulses.
  • The response time of the PESD3USB30Z to an ESD event is typically in the range of 1-10 ns, which is fast enough to protect sensitive downstream components.
  • Yes, the PESD3USB30Z is designed to support high-speed USB applications up to 480 Mbps, with minimal signal attenuation and distortion.
  • The PESD3USB30Z is designed to have minimal impact on signal integrity, with a typical insertion loss of less than 1 dB and a return loss of less than -15 dB.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PESD3USB30Z Overview

Use the download button to access the PESD3USB30Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PESD3, or try a keyword search, such as Data Line Filters

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
