PESD3USB3SZ - Nexperia

Description: PESDxUSB3S - ESD protection for differential data lines

Download PESD3USB3SZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

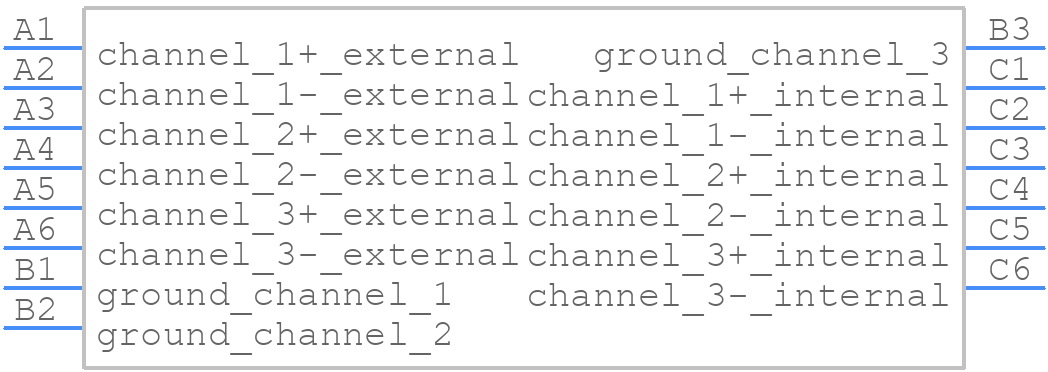

Symbol
PESD3USB3SZ - Nexperia - PCB symbol
click to zoom
PCB Footprints
PESD3USB3SZ - Nexperia PCB footprint - Other - Other - WLCSP15_6-3-6
click to zoom
3D Models
PESD3USB3SZ - Nexperia - 3D model - Other - WLCSP15_6-3-6
click to zoom

PESD3USB3SZ Details

  • Manufacturer Part Number:

    PESD3USB3SZ

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP15, 15 PIN

  • Manufacturer Package Code:

    WLCSP15_6-3-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    8

  • Approvals:

    IEC

  • Capacitance:

    0.45 µF

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • Length:

    2.42 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    3

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Rated Current:

    8 A

  • Rated Voltage:

    5 V

  • Width:

    1.22 mm

PESD3USB3SZ Frequently Asked Questions (FAQs)

  • The PESD3USB3SZ can withstand a maximum surge current of 3A according to IEC 61000-4-5.
  • The PESD3USB3SZ protects against ESD and overvoltage by using a combination of TVS diodes and resistors to clamp and divert excessive voltage and current away from the protected circuit.
  • The capacitance of the PESD3USB3SZ is typically around 1.5pF, which is relatively low and won't affect the signal integrity of high-speed USB signals.
  • Yes, the PESD3USB3SZ is compatible with both USB 3.0 and USB 2.0, making it a versatile solution for a wide range of USB applications.
  • The operating temperature range of the PESD3USB3SZ is -40°C to 125°C, making it suitable for use in a wide range of environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PESD3USB3SZ Overview

Use the download button to access the PESD3USB3SZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PESD3, or try a keyword search, such as Data Line Filters

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
