PESD5V0U2BMB,315 - Nexperia

Description: PESD5V0U2BMB - Ultra low capacitance bidirectional double ESD protection array

Download PESD5V0U2BMB,315 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

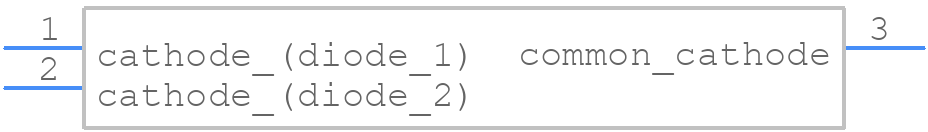

Symbol
PESD5V0U2BMB,315 - Nexperia - PCB symbol
click to zoom
PCB Footprints
PESD5V0U2BMB,315 - Nexperia PCB footprint - Other - Other - SOT883B
click to zoom
3D Models
PESD5V0U2BMB,315 - Nexperia - 3D model - Other - SOT883B
click to zoom

PESD5V0U2BMB,315 Details

  • Manufacturer Part Number:

    PESD5V0U2BMB,315

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    SOT-883B, DFN1006B-3, 3 PIN

  • Pin Count:

    3

  • Manufacturer Package Code:

    SOT883B

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    6.79

  • Breakdown Voltage-Max:

    9.5 V

  • Breakdown Voltage-Min:

    5.5 V

  • Breakdown Voltage-Nom:

    7.5 V

  • Case Connection:

    ANODE

  • Clamping Voltage-Max:

    12 V

  • Configuration:

    COMMON CATHODE, 2 ELEMENTS, 2 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PBCC-N3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    BIDIRECTIONAL

  • Reference Standard:

    IEC-60134; IEC-61000-4-2, 4-5

  • Rep Pk Reverse Voltage-Max:

    5 V

  • Reverse Current-Max:

    0.1 µA

  • Reverse Test Voltage:

    5 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    TIN

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

PESD5V0U2BMB,315 Frequently Asked Questions (FAQs)

  • Nexperia recommends a PCB layout with a ground plane and short traces to minimize inductance and ensure optimal performance. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device should be placed close to the protected IC and the traces should be as short as possible.
  • PESD5V0U2BMB,315 is designed to handle surge pulses according to IEC 61000-4-5. It can withstand surge pulses up to 5A (8/20μs) and 10A (10/700μs) without damage. The device clamps the surge voltage to a safe level, protecting the downstream circuitry.
  • The maximum operating temperature range for PESD5V0U2BMB,315 is -40°C to 125°C. However, the device is typically specified for operation up to 85°C. Operation above 85°C may affect the device's performance and reliability.
  • Yes, PESD5V0U2BMB,315 is AEC-Q101 qualified, making it suitable for use in automotive applications. However, it's essential to ensure that the device meets the specific requirements of the automotive system and that it is used within the recommended operating conditions.
  • PESD5V0U2BMB,315 is designed to have a minimal impact on signal integrity. The device has a low capacitance of 0.2pF and a low insertion loss of 0.1dB, making it suitable for high-speed data lines. However, it's essential to consider the device's parasitic elements and layout effects when designing the PCB.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PESD5V0U2BMB,315 Overview

Use the download button to access the PESD5V0U2BMB,315 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PESD5, or try a keyword search, such as Transient Suppressors

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
