PESD5V0U4BF,115 - Nexperia

Description: PESD5V0U4BF; PESD5V0U4BW - Ultra low capacitance bidirectional quadruple ESD protection arrays

Download PESD5V0U4BF,115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

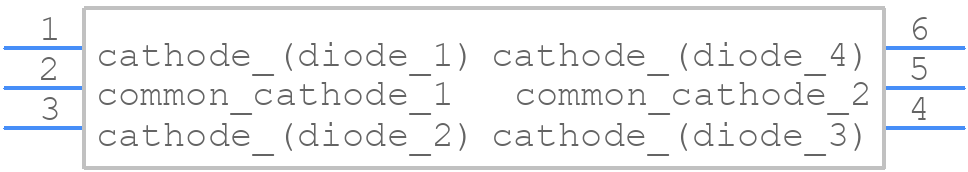

Symbol
PESD5V0U4BF,115 - Nexperia - PCB symbol
click to zoom
PCB Footprints
PESD5V0U4BF,115 - Nexperia PCB footprint - Other - Other - SOT886
click to zoom
3D Models
PESD5V0U4BF,115 - Nexperia - 3D model - Other - SOT886
click to zoom

PESD5V0U4BF,115 Details

  • Manufacturer Part Number:

    PESD5V0U4BF,115

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    SOT-886, XSON-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    SOT886

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    6.79

  • Breakdown Voltage-Max:

    9.5 V

  • Breakdown Voltage-Min:

    5.5 V

  • Breakdown Voltage-Nom:

    7.5 V

  • Configuration:

    COMMON CATHODE, 4 ELEMENTS, 4 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    MO-252

  • JESD-30 Code:

    R-PBCC-N6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    4

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    BIDIRECTIONAL

  • Reference Standard:

    AEC-Q101; IEC-60134; IEC-61000-4-2; MIL-STD-883

  • Rep Pk Reverse Voltage-Max:

    5 V

  • Reverse Current-Max:

    0.1 µA

  • Reverse Test Voltage:

    5 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    TIN

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

PESD5V0U4BF,115 Frequently Asked Questions (FAQs)

  • Nexperia recommends a PCB layout with a ground plane and short traces to minimize inductance and ensure optimal performance. A 4-layer PCB with a dedicated ground plane is recommended.
  • To select the right ESD protection device, consider factors such as the voltage rating, current rating, capacitance, and response time required for your application. Also, consider the type of interface being protected (e.g., USB, HDMI, etc.) and the level of ESD protection required (e.g., IEC 61000-4-2).
  • PESD5V0U4BF,115 is a unidirectional ESD protection device with a low capacitance of 0.4pF and a high surge current rating of 5A. It is suitable for high-speed interfaces such as USB, HDMI, and Ethernet. Other ESD protection devices from Nexperia may have different capacitance values, surge current ratings, or directionalities, making them suitable for different applications.
  • To ensure proper soldering, follow the recommended soldering profile and use a solder with a melting point compatible with the device's package. Also, ensure that the PCB is clean and free of oxidation, and that the device is handled by trained personnel to prevent damage.
  • The operating temperature range of PESD5V0U4BF,115 is -40°C to 125°C. However, the device can withstand storage temperatures from -55°C to 150°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PESD5V0U4BF,115 Overview

Use the download button to access the PESD5V0U4BF,115 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PESD5, or try a keyword search, such as Transient Suppressors

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
