CUI recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, a thermal pad on the bottom of the module can be connected to a heat sink or a thermal interface material for improved heat dissipation.
To ensure reliability and longevity, operate the module within the recommended temperature range (–40°C to +85°C). Implement proper thermal management, and ensure the module is not exposed to moisture, vibration, or physical stress. Regularly inspect the module for signs of wear or damage.
The PESE1-S5-S3-M-TR is designed to meet CISPR 22 Class B emissions standards. To minimize EMI and RFI, use a shielded enclosure, keep the module away from antennas and high-frequency components, and use EMI filters or shielding on the input and output lines.
Yes, the PESE1-S5-S3-M-TR can be used in redundant or parallel configurations. However, consult with CUI's application engineers to ensure proper design and implementation, as this may require custom solutions and additional components.
The PESE1-S5-S3-M-TR is certified to UL 60950-1, EN 60950-1, and IEC 60950-1 safety standards. It also meets the requirements of RoHS, REACH, and WEEE directives. Consult the datasheet or CUI's website for the latest certification information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PESE1-S5-S3-M-TR Overview

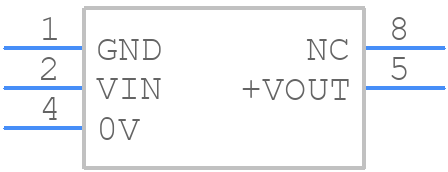

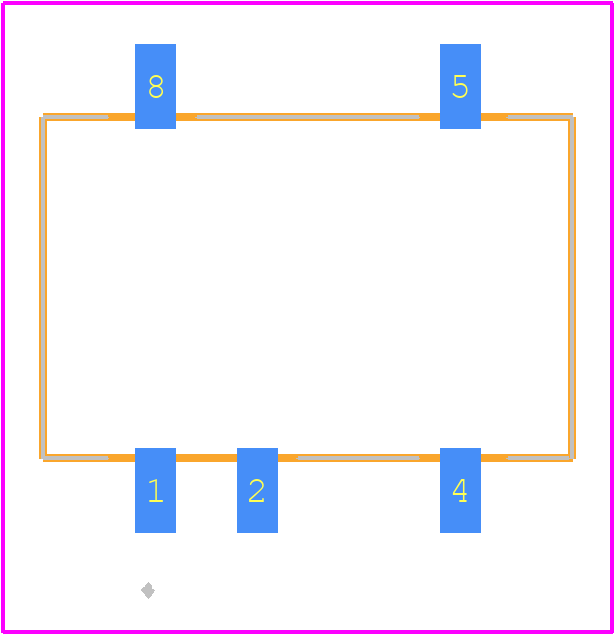

Use the download button to access the PESE1-S5-S3-M-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PESE1,
or try a keyword search, such as Power Supply Modules
