PETC-01-40-01-01-S-VT - SAMTEC

Description: Conn Shrouded Header (4 Sides) HDR 2Power/40Signal POS 6.35mm/2.54mm Solder ST Top Entry Thru-Hole PowerStrip™ Tray

Download PETC-01-40-01-01-S-VT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PETC-01-40-01-01-S-VT - SAMTEC - PCB symbol
click to zoom
PCB Footprints

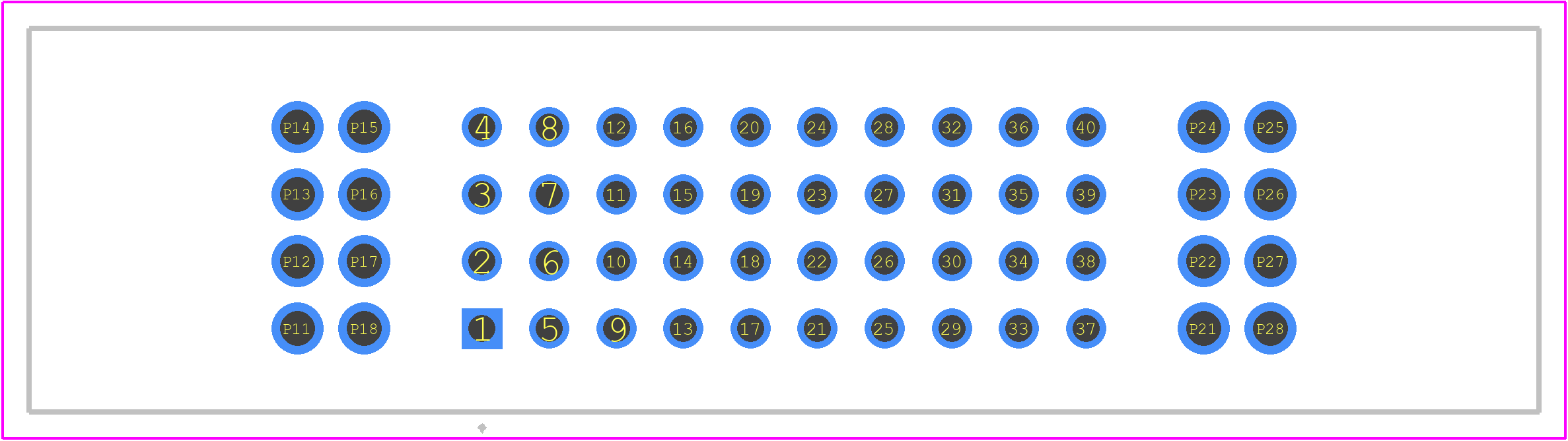

PETC-01-40-01-01-S-VT - SAMTEC PCB footprint - Other - Other - PETC-01-40-01-01-S-VT-1
click to zoom
3D Models
PETC-01-40-01-01-S-VT - SAMTEC - 3D model - Other - PETC-01-40-01-01-S-VT-1
click to zoom

PETC-01-40-01-01-S-VT Details

  • Manufacturer Part Number:

    PETC-01-40-01-01-S-VT

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    10

  • Additional Feature:

    2 POWER PINS ARE AVAILABLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    YES

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    4

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    42

PETC-01-40-01-01-S-VT Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure mating and prevent damage to the connector.
  • Yes, PETC-01-40-01-01-S-VT is designed to withstand high-vibration environments. Samtec's PET series connectors are tested to meet the requirements of IEC 61373 Cat 2, which includes vibration testing up to 57.3 Hz with an amplitude of 1 mm.
  • The maximum operating temperature for PETC-01-40-01-01-S-VT is 125°C (257°F). However, it's essential to note that the temperature rating may vary depending on the specific application and environmental conditions.
  • Yes, PETC-01-40-01-01-S-VT is compatible with lead-free soldering processes. Samtec's PET series connectors are designed to meet the requirements of RoHS and WEEE directives, making them suitable for lead-free soldering applications.
  • The recommended mating cycle for PETC-01-40-01-01-S-VT is 500 cycles minimum. However, the actual mating cycle may vary depending on the specific application, environmental conditions, and usage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PETC-01-40-01-01-S-VT Overview

Use the download button to access the PETC-01-40-01-01-S-VT schematic symbol, PCB footprint, and 3D model.
