PF0011/15/PC - Bulgin

Description: Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In; Through Hole, Right Angle

Download PF0011/15/PC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PF0011/15/PC - Bulgin - PCB symbol
click to zoom
PCB Footprints

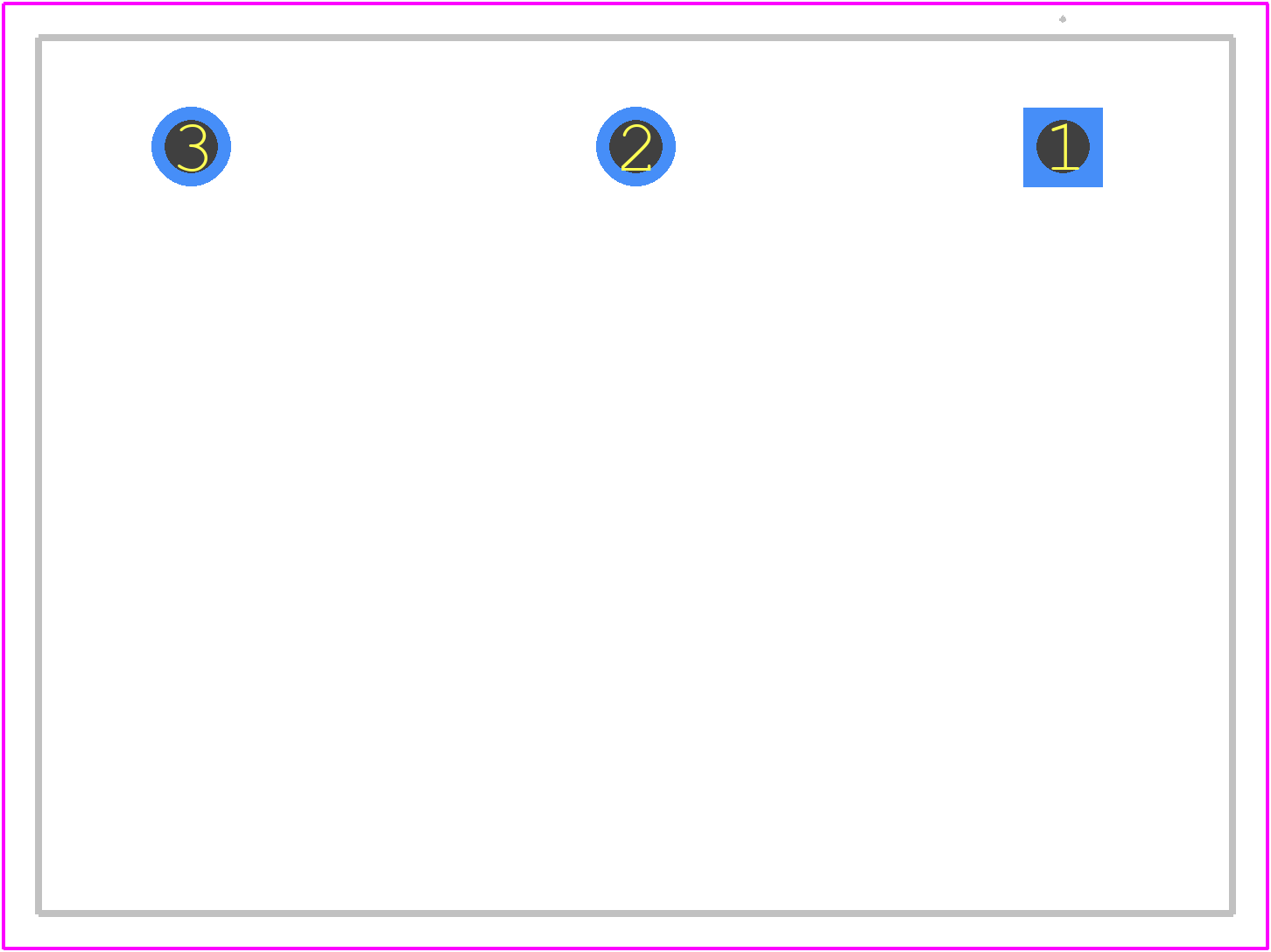

PF0011/15/PC - Bulgin PCB footprint - Other - Other - PF0011/15/PC-1
click to zoom
3D Models
PF0011/15/PC - Bulgin - 3D model - Other - PF0011/15/PC-1
click to zoom

PF0011/15/PC Details

  • Manufacturer Part Number:

    PF0011/15/PC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Bulgin

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: IEC/EN 60320-1/C14; UL94V-0; CSA; VDE

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    TIN

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    10A, 250VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SCREW

  • Total Number of Contacts:

    3

PF0011/15/PC Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified by Bulgin's application notes.
  • Yes, the PF0011/15/PC is designed to withstand vibrations up to 10g, making it suitable for use in high-vibration environments.
  • Yes, the PF0011/15/PC has an IP67 rating, making it suitable for outdoor use and providing protection against dust and water ingress.
  • The maximum operating temperature range for the PF0011/15/PC is -40°C to 125°C, as specified by Bulgin's datasheet.
  • No, the PF0011/15/PC is designed for use with wire sizes up to 1.5mm². Using a larger wire size may compromise the connector's performance and reliability.
