PF030-025B-C10-H - UJU

Description: 0.3mm Pitch, 1.0mm Height, Low-contact, Right Angle Type, 25 Position, 0.2A MAX, 100mΩ Max., 200V AC(RMS)

Download PF030-025B-C10-H Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this PF030-025B-C10-H model

Email notifications will be applied after download.

Send part feedback

Symbol

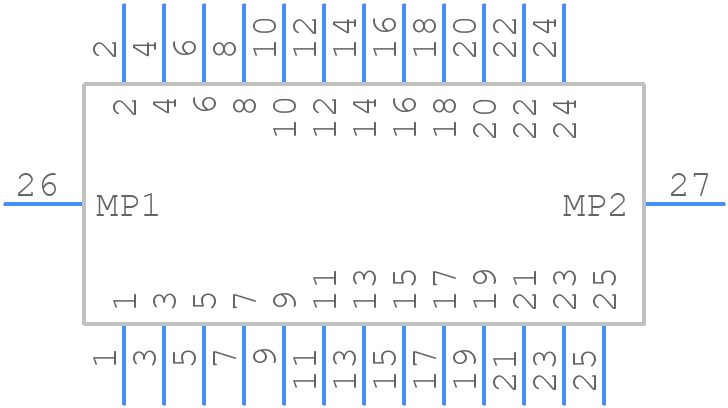

PF030-025B-C10-H - UJU - PCB symbol

PCB Footprints

PF030-025B-C10-H - UJU PCB footprint - Other - Other - PF030-025B-C10-H-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for PF030-025B-C10-H
Part Number PF030-025B-C10-H
Manufacturer UJU
Pin Count 27
Part Category Connector
Package Category Other
Footprint Name Other - PF030-025B-C10-H-1
Released Date Apr 21, 2025
Last Modified Date Dec 3, 2025 10:56 PM UTC
Pinout / Pin List Click Here (Member Only)

PF030-025B-C10-H Details
