TDK provides a recommended PCB layout in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize noise, and reduce electromagnetic interference (EMI).
The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. TDK provides guidance on capacitor selection in their application notes and design guides. It's also recommended to consult with capacitor manufacturers for specific recommendations.
The PFC3519QM-301K06B-00 has a high power density, and thermal management is crucial to ensure reliable operation. TDK recommends using a heat sink, thermal interface material, and a well-designed PCB layout to dissipate heat effectively. The thermal resistance of the component and the PCB should be considered in the design.
To ensure EMC, it's essential to follow TDK's guidelines for PCB layout, component placement, and shielding. Additionally, the design should consider the use of EMI filters, common-mode chokes, and shielding components to minimize radiated emissions and conducted noise.
TDK provides reliability data and lifespan expectations for the PFC3519QM-301K06B-00 in their datasheet and application notes. The component's reliability is affected by factors such as operating temperature, voltage stress, and humidity. It's essential to consider these factors in the design to ensure the component meets the required lifespan and reliability expectations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PFC3519QM-301K06B-00 Overview

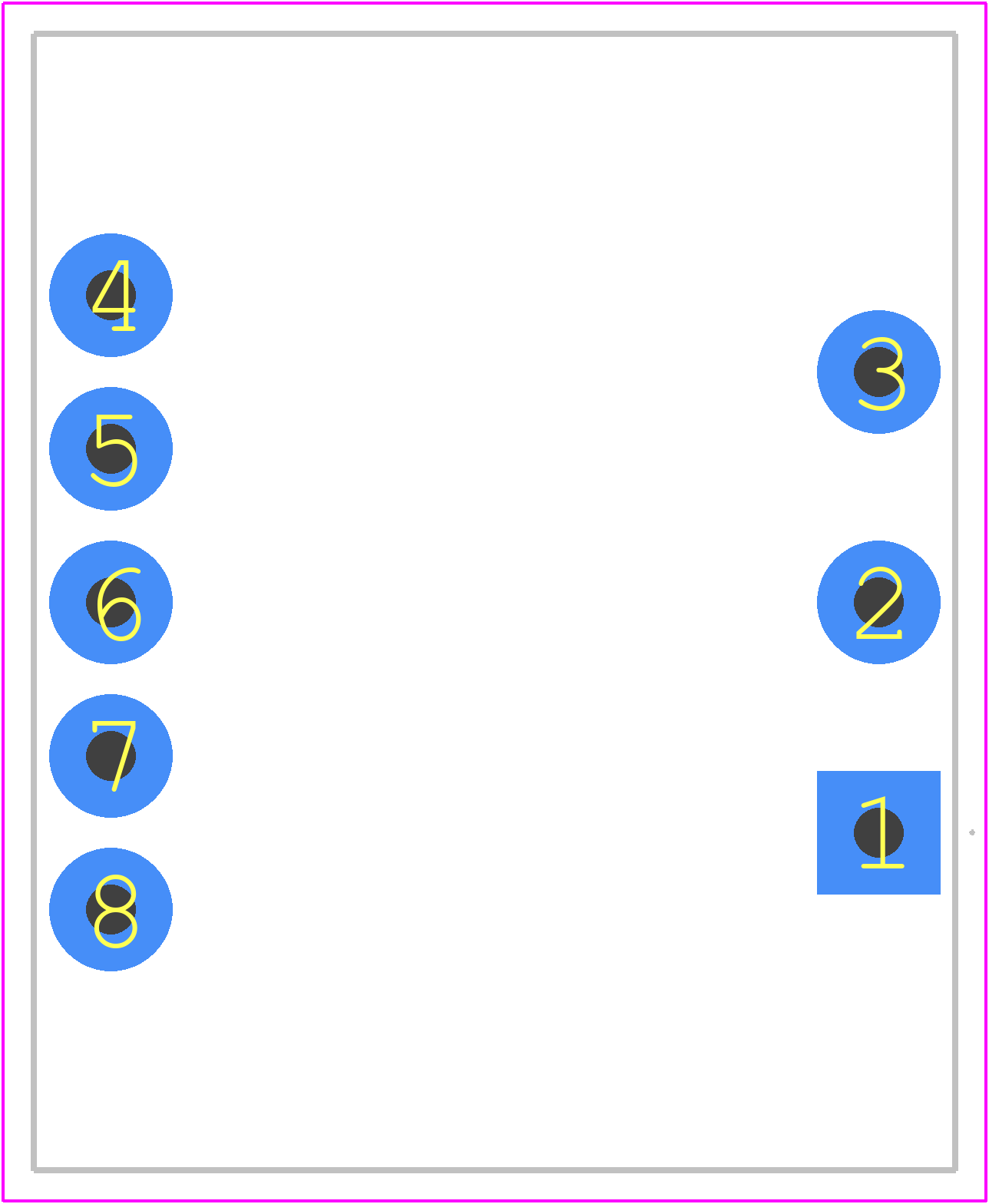

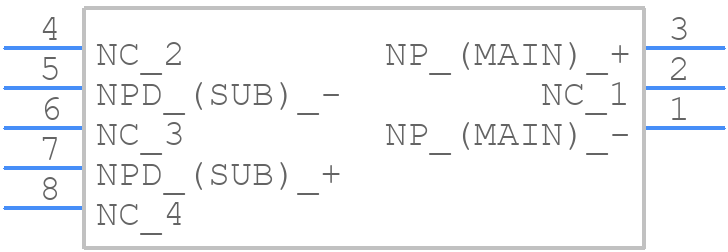

Use the download button to access the PFC3519QM-301K06B-00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PFC35,
or try a keyword search, such as Fixed Inductors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
