TDK provides a recommended PCB layout in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, thermal management, and EMI reduction.
The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. TDK provides guidance on capacitor selection in their application notes and design guides.
The maximum operating temperature range for the PFC3525ER-231K06E-00 is -40°C to +125°C, as specified in the datasheet. However, the recommended operating temperature range for optimal performance is -20°C to +100°C.
To ensure EMC, follow TDK's guidelines for PCB layout, component selection, and shielding. Additionally, consider using EMI filters, and ensure that the PFC is properly grounded and shielded.
The typical efficiency of the PFC3525ER-231K06E-00 is around 95%. To optimize efficiency, ensure proper component selection, follow TDK's application notes, and consider using a thermal management system to reduce losses.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PFC3525ER-231K06E-00 Overview

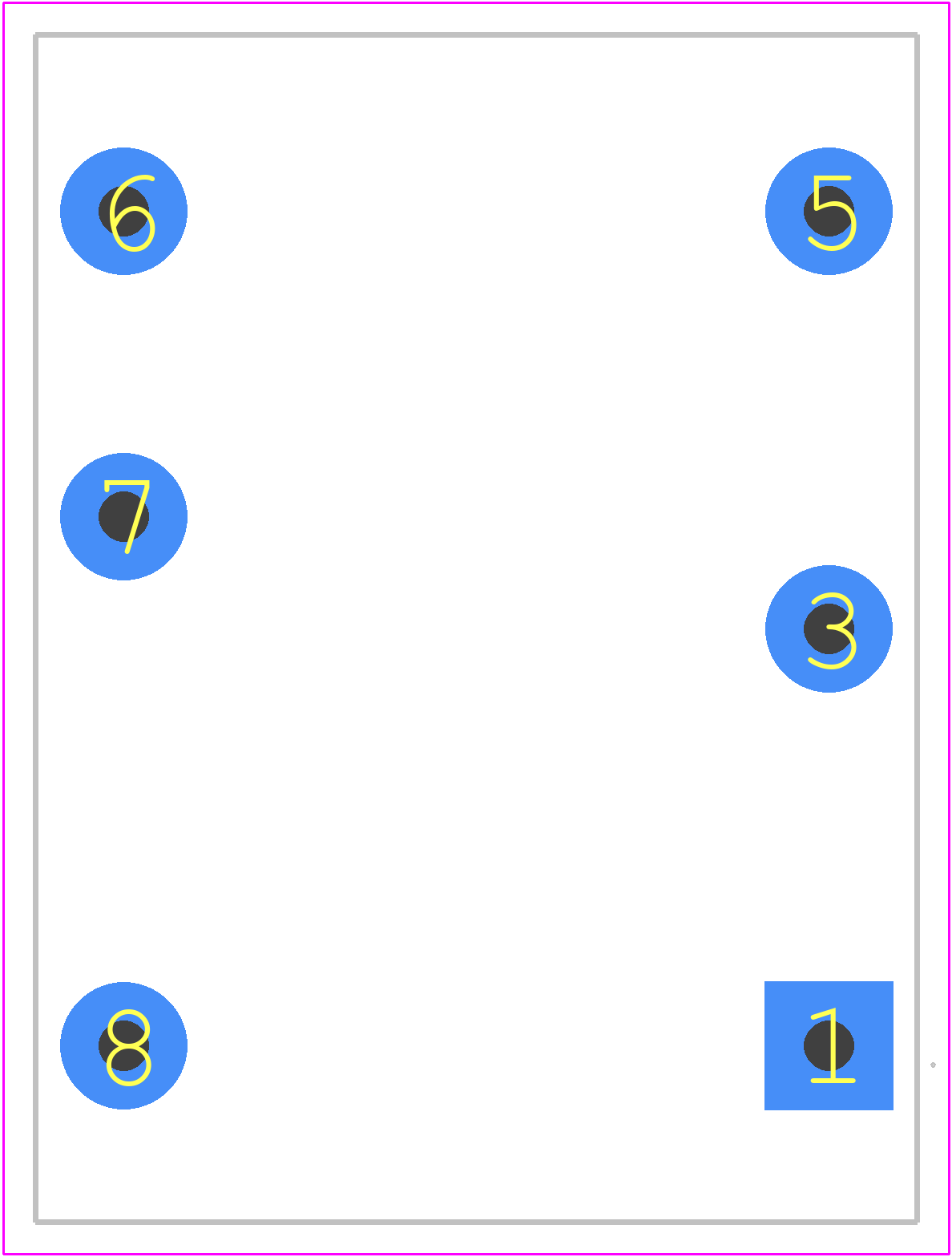

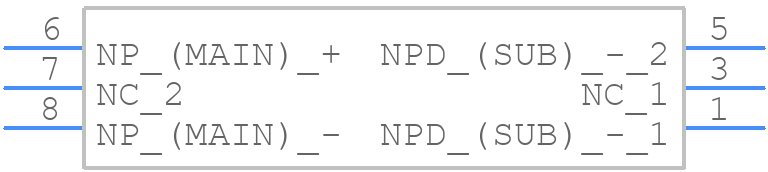

Use the download button to access the PFC3525ER-231K06E-00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PFC35,
or try a keyword search, such as Fixed Inductors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
