TDK provides a recommended PCB layout in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize noise, and reduce electromagnetic interference (EMI).
The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. TDK provides guidance on capacitor selection in their application notes and design guides. Additionally, simulation tools like SPICE models can help engineers optimize their design.
While the datasheet provides a recommended operating temperature range, the maximum operating temperature range may be higher. According to TDK, the PFC3819QM-151K11B-00 can operate up to 125°C, but this may affect its performance and lifespan. It's essential to consult with TDK's application engineers or technical support for specific guidance.
To ensure EMC, engineers should follow TDK's guidelines for PCB layout, component selection, and shielding. Additionally, they should consider the system-level EMC requirements and perform EMC testing to ensure compliance with relevant standards.
The typical efficiency of the PFC3819QM-151K11B-00 is around 95%. To optimize efficiency, engineers should ensure proper component selection, PCB layout, and thermal management. They can also use simulation tools and TDK's application notes to optimize their design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PFC3819QM-151K11B-00 Overview

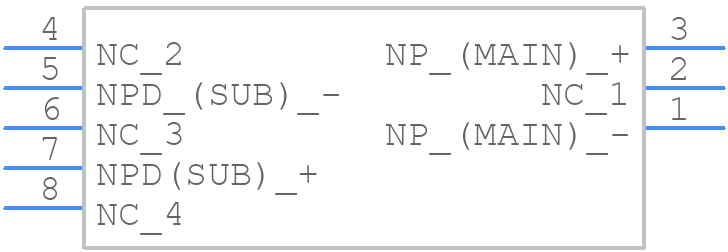

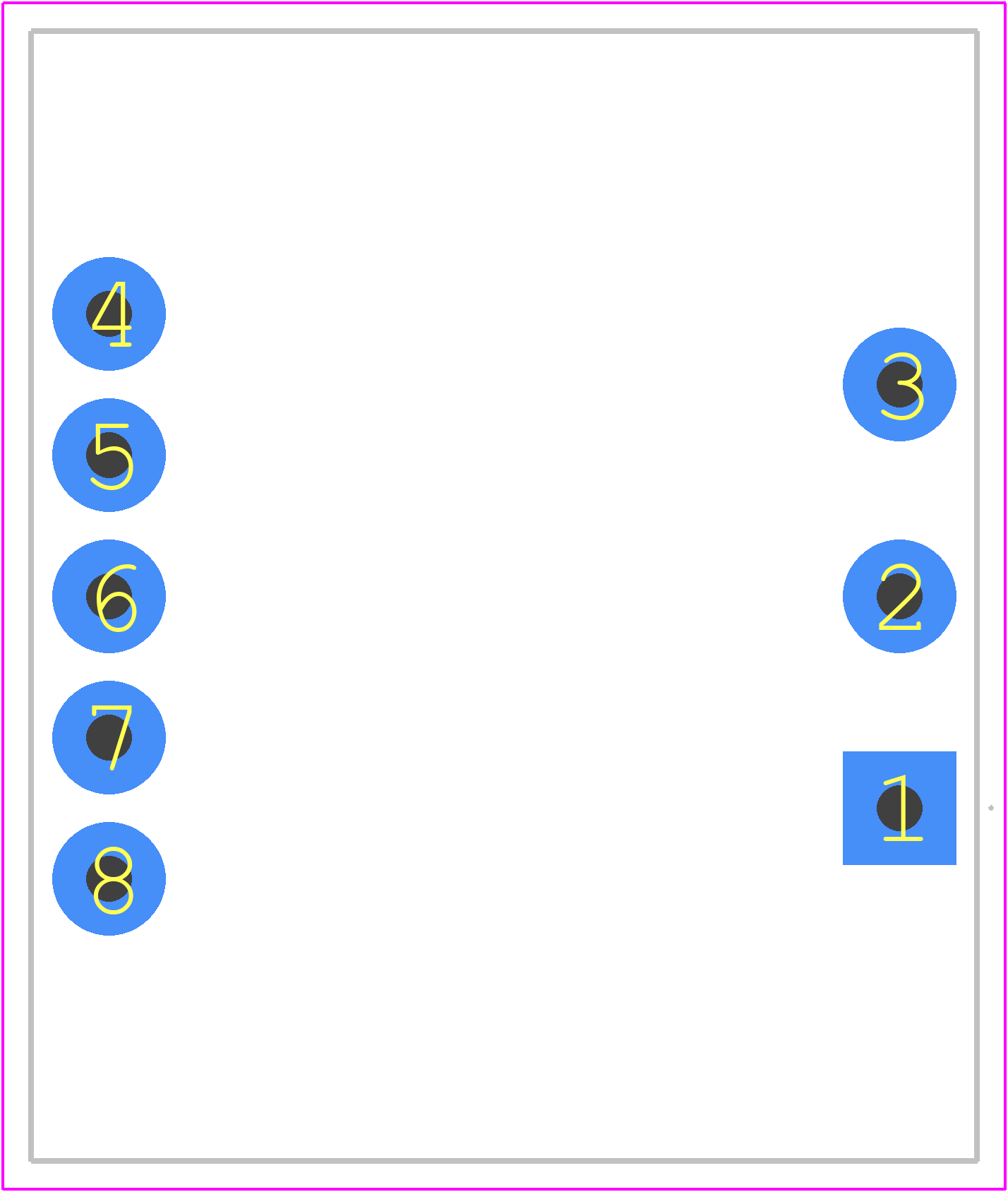

Use the download button to access the PFC3819QM-151K11B-00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PFC38,
or try a keyword search, such as Fixed Inductors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
