PFC4124QM-151K11D-00 - TDK

PFC4124QM-151K11D-00 Frequently Asked Questions (FAQs)

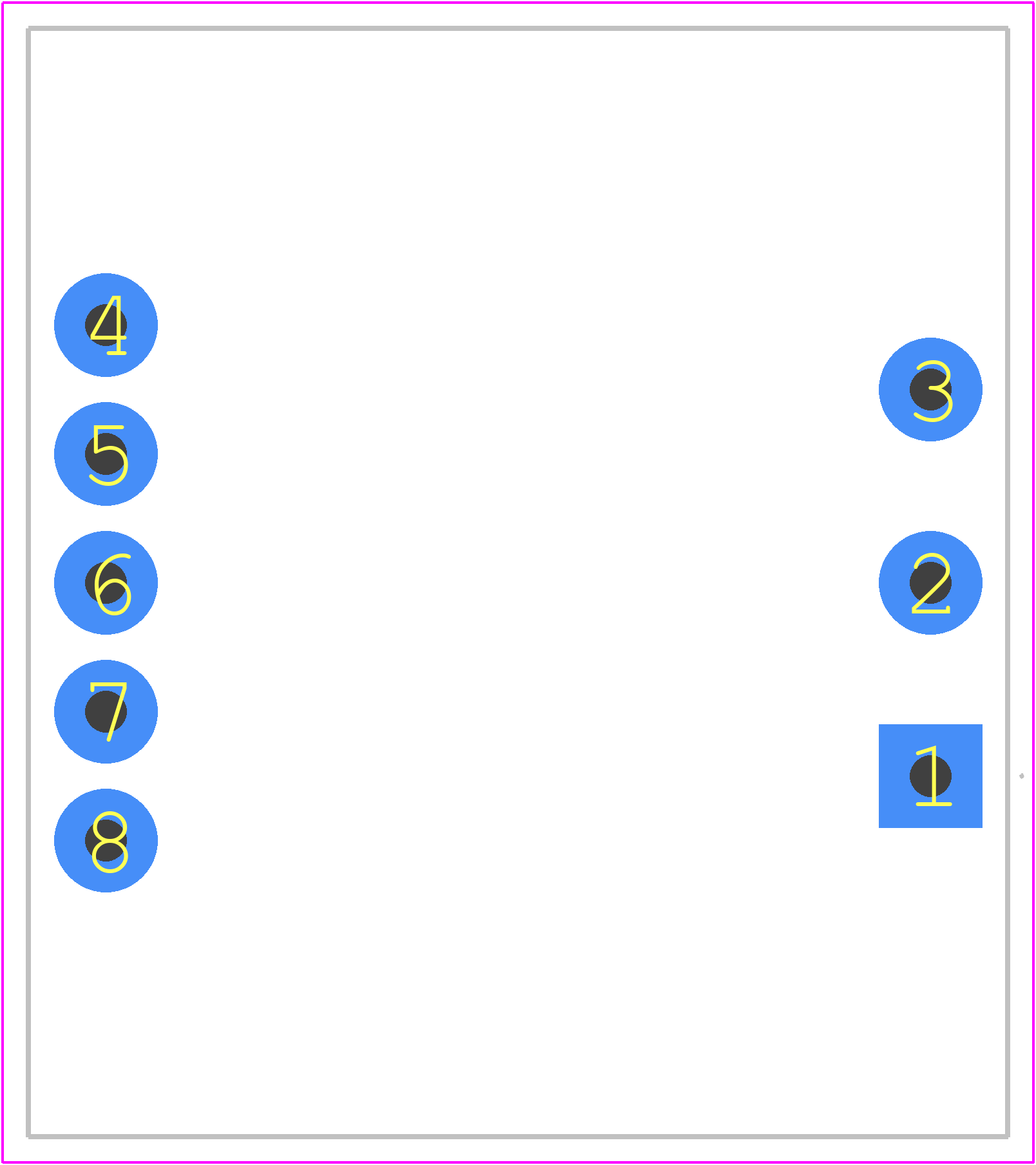

• What is the recommended PCB layout and land pattern for optimal performance?
  TDK provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, thermal management, and reliability.
• How do I select the right input and output capacitors for this PFC?
  The selection of input and output capacitors depends on factors such as voltage rating, capacitance value, and ESR. TDK recommends using capacitors with a voltage rating of at least 1.5 times the maximum input voltage and a capacitance value that meets the required hold-up time. Additionally, low-ESR capacitors are recommended to minimize energy losses.
• What is the maximum allowed ambient temperature for this PFC?
  The maximum allowed ambient temperature for the PFC4124QM-151K11D-00 is 85°C, as specified in the datasheet. However, it's essential to consider the thermal derating curve to ensure reliable operation within the specified temperature range.
• Can I use this PFC in a high-humidity environment?
  The PFC4124QM-151K11D-00 is designed to operate in a humidity range of 40% to 80% RH. However, it's recommended to take precautions to prevent moisture ingress and ensure proper sealing and conformal coating to maintain reliability in high-humidity environments.
• What is the recommended input voltage range for this PFC?
  The recommended input voltage range for the PFC4124QM-151K11D-00 is 85-265 Vac, as specified in the datasheet. Operating outside this range may affect performance, efficiency, and reliability.
