PFE1000FA-12 - TDK Lambda

Description: Enclosed AC DC Converters 1 Output 12V 60A 85 ~ 265 VAC Input

Download PFE1000FA-12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

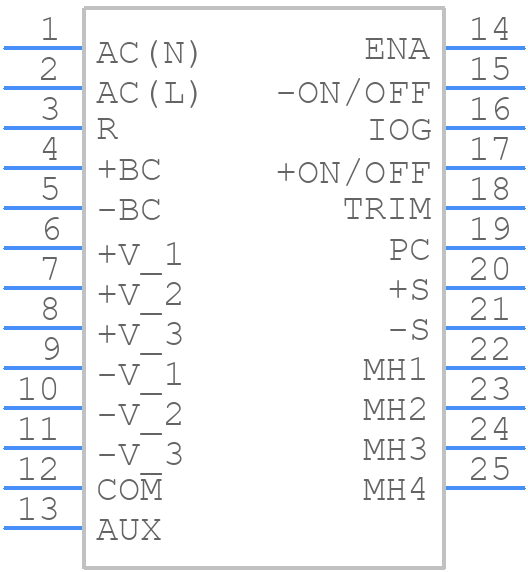

PFE1000FA-12 - TDK Lambda - PCB symbol
click to zoom
PCB Footprints

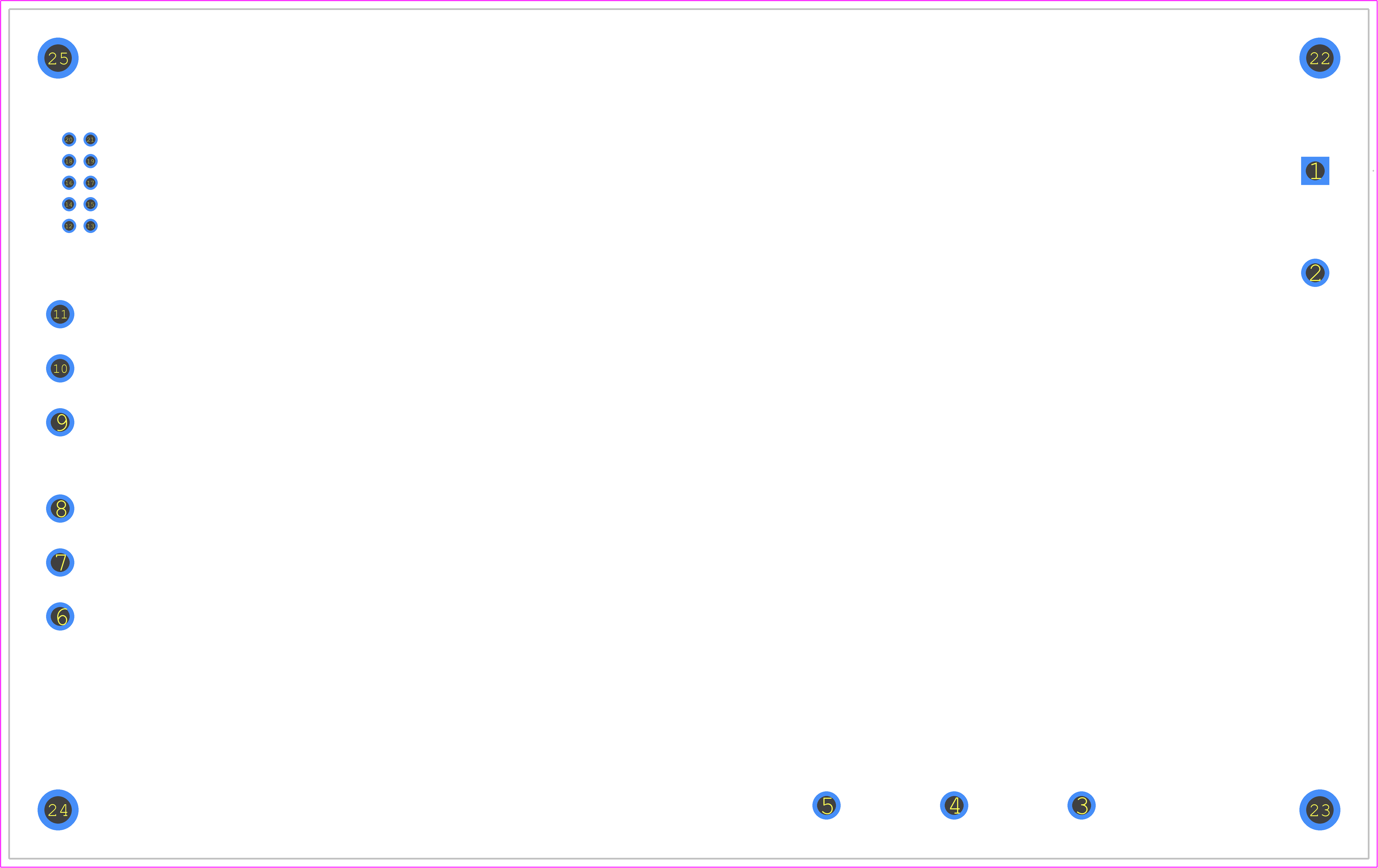

PFE1000FA-12 - TDK Lambda PCB footprint - Other - Other - PFE1000FA-12-1
click to zoom
3D Models
PFE1000FA-12 - TDK Lambda - 3D model - Other - PFE1000FA-12-1
click to zoom

PFE1000FA-12 Details

  • Manufacturer Part Number:

    PFE1000FA-12

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    PACKAGE

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    265 V

  • Input Voltage-Min:

    85 V

  • Input Voltage-Nom:

    100 V

  • JESD-30 Code:

    X-XXMA-X

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Output Voltage-Max:

    14.4 V

  • Output Voltage-Min:

    9.6 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    UNSPECIFIED

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    720 W

  • Trim/Adjustable Output:

    YES

PFE1000FA-12 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the PFE1000FA-12 is -20°C to +70°C, with a derating of 2.5% per °C above 40°C.
  • Yes, the PFE1000FA-12 is designed to operate in a humid environment, but it's recommended to take precautions to prevent moisture ingress, such as conformal coating or potting.
  • The recommended input fuse rating for the PFE1000FA-12 is 5A slow-blow type, but this may vary depending on the specific application and system requirements.
  • Yes, the PFE1000FA-12 can be paralleled for higher power output, but it's recommended to use a master-slave configuration and ensure that the units are synchronized to prevent oscillation.
  • The typical efficiency of the PFE1000FA-12 is around 85-90% at full load, depending on the input voltage and output load.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PFE1000FA-12 Overview

Use the download button to access the PFE1000FA-12 schematic symbol, PCB footprint, and 3D model.
