PFE700SA-48/T - TDK

Description: AC-DC Power Supplies, Power module type, Output: 714W, 48V, Option: Mounting stand (Non-threaded through hole)

Download PFE700SA-48/T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

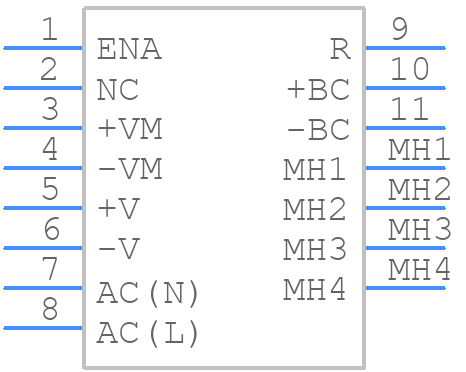

Symbol
PFE700SA-48/T - TDK - PCB symbol
click to zoom

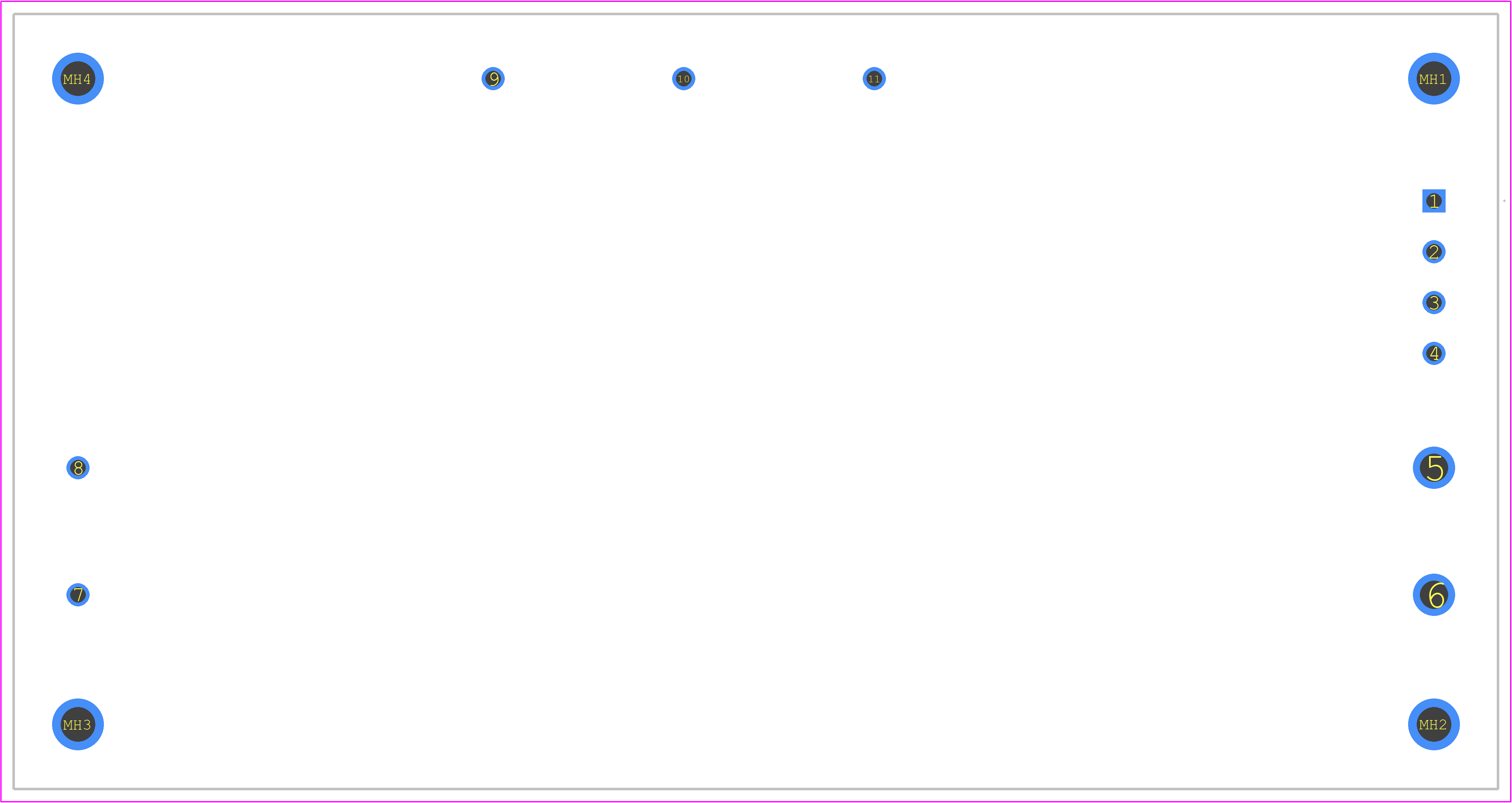

PCB Footprints
PFE700SA-48/T - TDK PCB footprint - Other - Other - PFE700SA-48
click to zoom
3D Models
PFE700SA-48/T - TDK - 3D model - Other - PFE700SA-48
click to zoom

PFE700SA-48/T Details

  • Manufacturer Part Number:

    PFE700SA-48/T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7.7

  • Analog IC - Other Type:

    AC-DC POWER FACTOR CORRECTION MODULE

  • Input Voltage-Max:

    265 V

  • Input Voltage-Min:

    85 V

  • Input Voltage-Nom:

    100 V

  • JESD-30 Code:

    X-XXMA-X

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Output Voltage-Nom:

    51 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    UNSPECIFIED

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UNSPECIFIED

  • Total Power Output-Max:

    714 W

  • Trim/Adjustable Output:

    YES

PFE700SA-48/T Frequently Asked Questions (FAQs)

  • TDK recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is also recommended.
  • To ensure reliability in high-temperature applications, it is essential to follow TDK's recommended derating guidelines for the PFE700SA-48/T. This includes reducing the output current and voltage according to the temperature derating curve provided in the datasheet. Additionally, ensuring good airflow and using a heat sink can help to reduce the operating temperature of the device.
  • The maximum allowable ripple current for the PFE700SA-48/T is not explicitly stated in the datasheet. However, as a general guideline, TDK recommends keeping the ripple current below 30% of the rated output current to ensure reliable operation and minimize the risk of overheating.
  • Yes, the PFE700SA-48/T can be used in a parallel configuration to increase the output current. However, it is essential to ensure that the output currents are balanced and that the devices are properly synchronized to avoid oscillations and instability. TDK recommends using a dedicated parallel configuration circuit and following their application notes for parallel operation.
  • The typical start-up time for the PFE700SA-48/T is around 10-20 ms, depending on the input voltage and output load conditions. However, this can vary depending on the specific application and circuit design. It is recommended to consult TDK's application notes and evaluation boards for more detailed information on start-up time and sequencing.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PFE700SA-48/T Overview

Use the download button to access the PFE700SA-48/T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PFE70, or try a keyword search, such as Power Supply Modules

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
