PFH500F-28-100-R - TDK Lambda

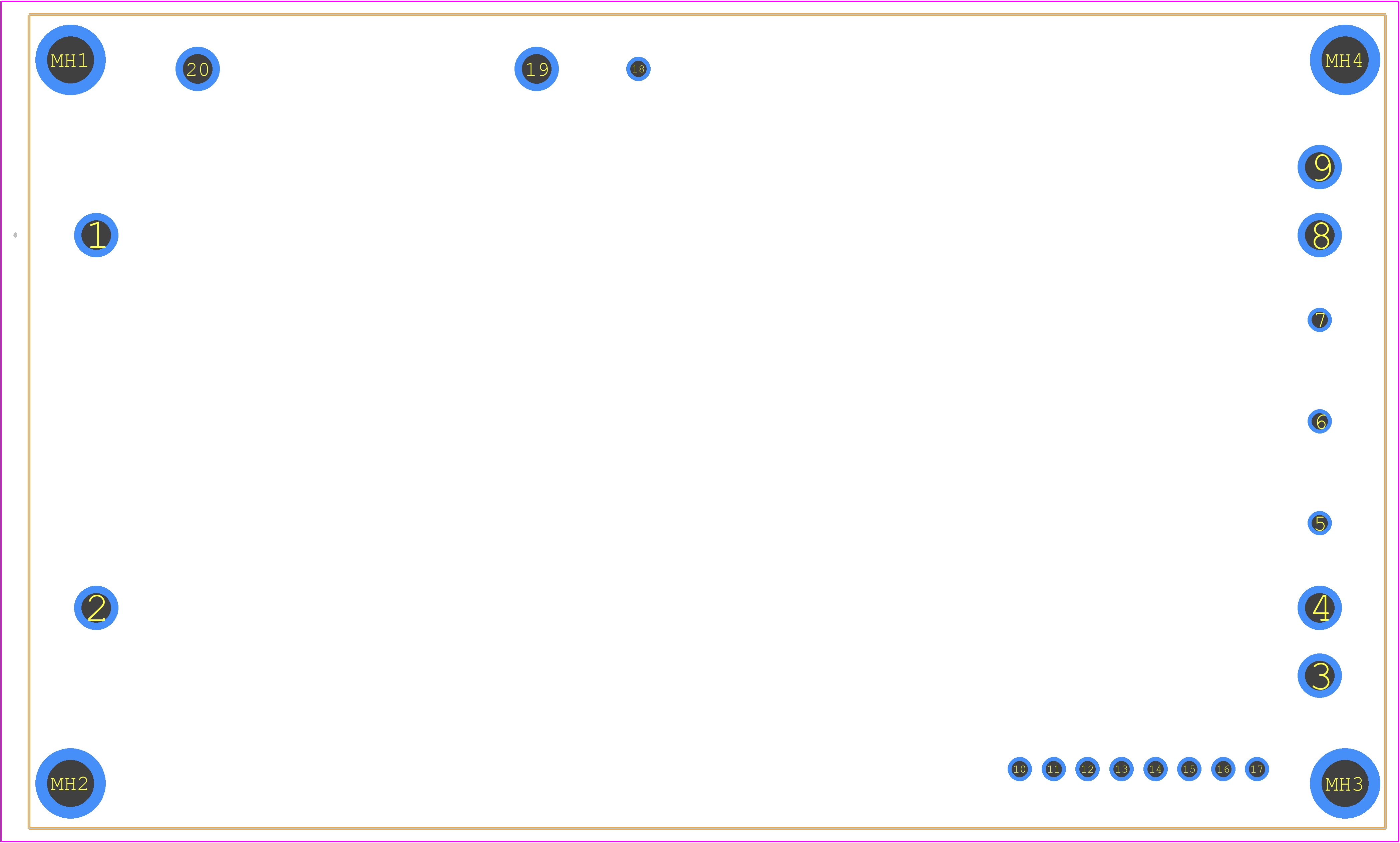

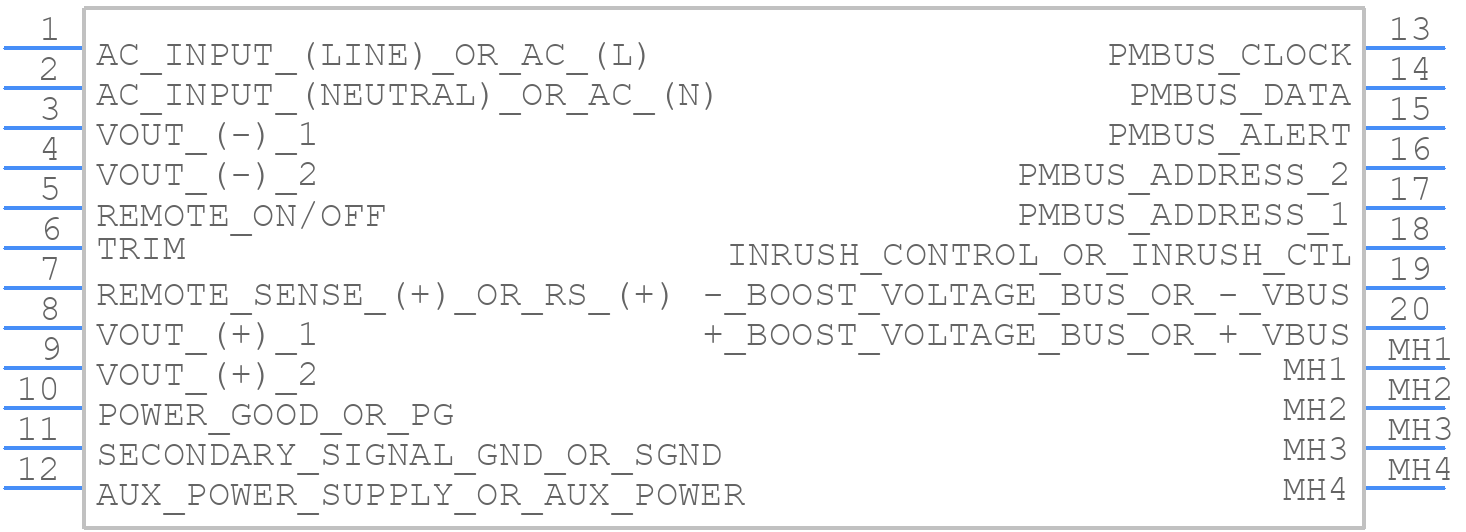

PFH500F-28-100-R Details

• Manufacturer Part Number:

  PFH500F-28-100-R

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Package Description:

  PACKAGE-20

• ECCN Code:

  EAR99

• Manufacturer:

  TDK-Lambda Corporation

• Analog IC - Other Type:

  AC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE, CSA, EN, IEC, UL

• Control Mode:

  VOLTAGE-MODE

• Efficiency (Main Output):

  90%

• Input Voltage-Max:

  265 V

• Input Voltage-Min:

  85 V

• Input Voltage-Nom:

  115 V

• JESD-30 Code:

  R-MQFM-P20

• Length:

  101.6 mm

• Line Regulation-Max:

  0.15%

• Load Regulation-Max:

  0.1%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  18 A

• Output Voltage-Max:

  33.6 V

• Output Voltage-Min:

  22.4 V

• Output Voltage-Nom:

  28 V

• Package Body Material:

  METAL

• Package Code:

  QFM

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Protections:

  OVER CURRENT; OVER VOLTAGE; THERMAL

• Seated Height-Max:

  13.46 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  PIN/PEG

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  504 W

• Trim/Adjustable Output:

  YES

• Width:

  60.96 mm
