PFM4414BB6M24D0C08 - VICOR

Description: Switching Power Supplies VIA PFM 4414 LNG PIN ALON C 24

Download PFM4414BB6M24D0C08 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PFM4414BB6M24D0C08 - VICOR - PCB symbol
click to zoom

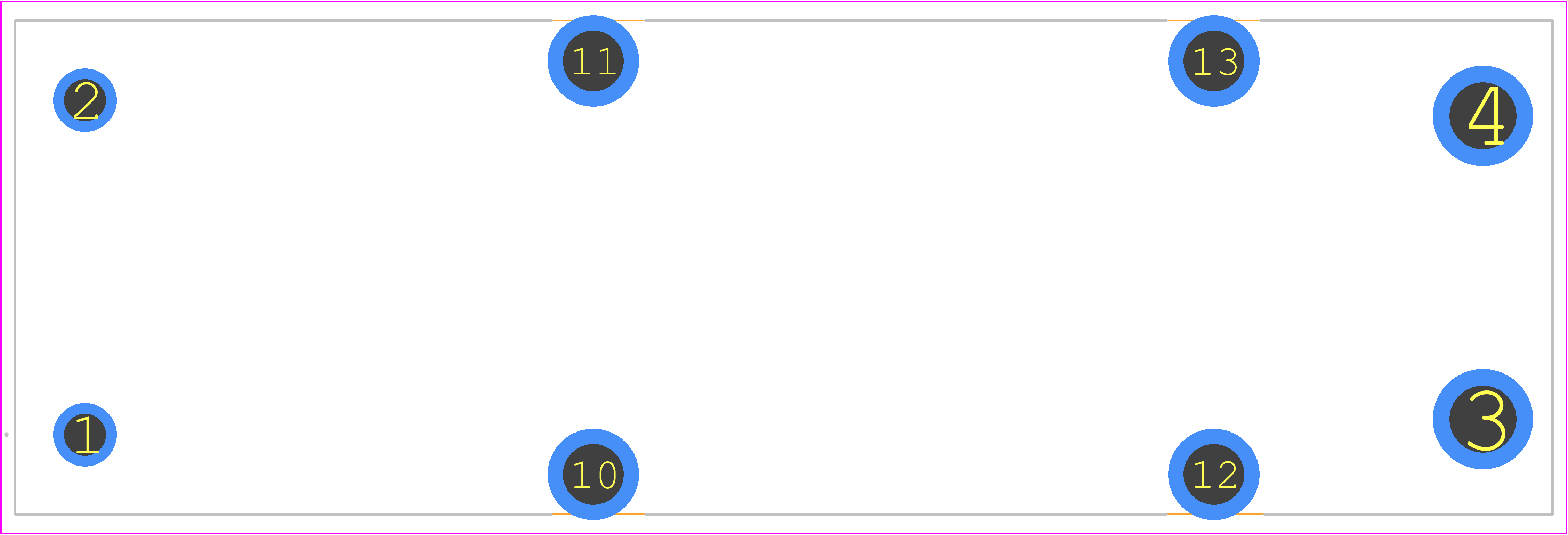

PCB Footprints
PFM4414BB6M24D0C08 - VICOR PCB footprint - Other - Other - PFM4414BB6M24D0C08-2
click to zoom
3D Models
PFM4414BB6M24D0C08 - VICOR - 3D model - Other - PFM4414BB6M24D0C08-2
click to zoom

PFM4414BB6M24D0C08 Details

  • Manufacturer Part Number:

    PFM4414BB6M24D0C08

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-4

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7.4

  • Analog IC - Other Type:

    AC-DC POWER FACTOR CORRECTION MODULE

  • Approvals:

    CE, CSA, EN, IEC, UL

  • Efficiency (Main Output):

    92%

  • Input Voltage-Max:

    264 V

  • Input Voltage-Min:

    85 V

  • Input Voltage-Nom:

    115 V

  • JESD-30 Code:

    R-XDMA-P4

  • Length:

    110.55 mm

  • Line Regulation-Max:

    3%

  • Load Regulation-Max:

    3%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    16.7 A

  • Output Voltage-Max:

    25 V

  • Output Voltage-Min:

    23 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,4LEAD,3.9

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER CURRENT, OVER VOLTAGE, UNDER VOLTAGE, SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.3535 Vrms

  • Seated Height-Max:

    9.781 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    UNSPECIFIED

  • Terminal Pitch:

    29.75 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    400 W

  • Trim/Adjustable Output:

    NO

  • Warm-up Time:

    1 s

  • Width:

    35.54 mm

PFM4414BB6M24D0C08 Frequently Asked Questions (FAQs)

  • Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure optimal performance and thermal management.
  • Vicor recommends using low-ESR capacitors with a voltage rating of at least 2x the input voltage. The output capacitor selection depends on the output voltage and current requirements. Vicor provides capacitor selection guidelines in their application notes.
  • The maximum allowable ripple current for the input and output capacitors depends on the specific capacitor selection and operating conditions. Vicor recommends following the capacitor manufacturer's guidelines and performing thermal derating calculations to ensure reliable operation.
  • Vicor recommends using external overcurrent protection devices, such as fuses or circuit breakers, and monitoring the module's fault signals (e.g., FAULT pin) to detect and respond to overcurrent and fault conditions.
  • Vicor recommends following a controlled startup and shutdown sequence to prevent damage to the module and ensure reliable operation. This typically involves ramping up the input voltage and enabling the output voltage in a controlled manner.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PFM4414BB6M24D0C08 Overview

Use the download button to access the PFM4414BB6M24D0C08 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PFM44, or try a keyword search, such as Power Supply Modules
