Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure optimal performance and thermal management.
Vicor recommends using low-ESR capacitors with a voltage rating of at least 1.5 times the maximum input voltage. The output capacitor should be selected based on the output voltage and current requirements. Vicor provides guidance on capacitor selection in their application notes.
The PFM4914BB6M24D0TA8 has an operating temperature range of -40°C to +125°C, but derating may be required for high-temperature operation. Consult the datasheet and Vicor's application notes for more information.
Vicor provides guidance on EMC considerations in their application notes. It's recommended to follow proper PCB layout and shielding techniques, and to use EMI filters and shielding components as needed to ensure compliance with relevant EMC standards.
The typical efficiency of the PFM4914BB6M24D0TA8 is around 92-95% at full load, depending on the input voltage and output load. Efficiency may vary depending on the specific application and operating conditions. Consult the datasheet and Vicor's application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PFM4914BB6M24D0TA8 Overview

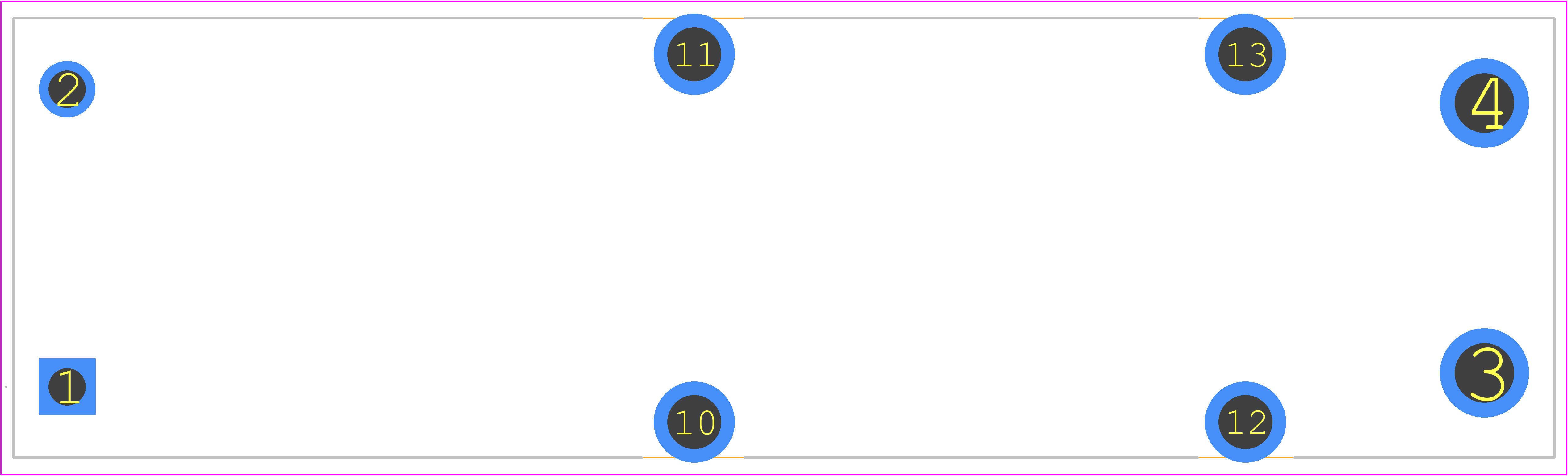

Use the download button to access the PFM4914BB6M24D0TA8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PFM49,
or try a keyword search, such as Power Supply Modules
