The maximum output power of the PFS7528H is 65W, but it can be derated based on the input voltage, output voltage, and ambient temperature.
The PFS7528H is certified to IEC 62368-1 and UL 62368-1, but it's the designer's responsibility to ensure the entire system meets the required safety certifications. This may involve additional components, layout considerations, and testing.
A good PCB layout for the PFS7528H involves keeping the input and output stages separate, using a solid ground plane, and minimizing the loop area of the switching nodes. Power Integrations provides a recommended layout in their application notes.
To optimize the PFS7528H for efficiency, ensure the input voltage is within the recommended range, use a suitable output capacitor, and optimize the transformer turns ratio. Additionally, consider using a synchronous rectifier and optimizing the PCB layout for minimal losses.
The maximum ambient temperature for the PFS7528H is 85°C, but the device can operate up to 100°C with derating. It's essential to consider the thermal design and ensure adequate cooling for the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PFS7528H Overview

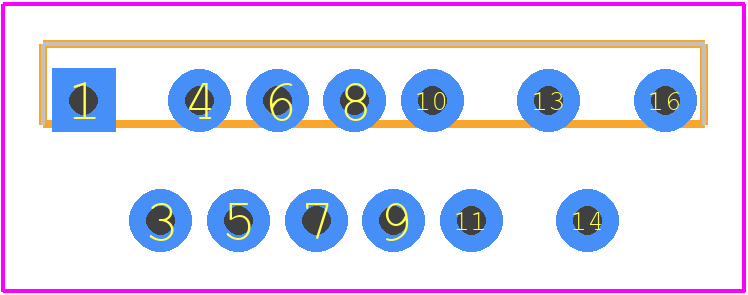

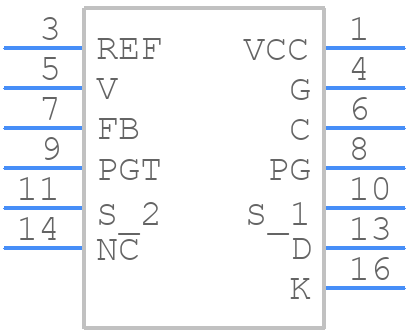

Use the download button to access the PFS7528H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PFS75,
or try a keyword search, such as Switching Regulator or Controllers
