Delta Electronics provides a reference design guide for the PG02S1205A, which includes recommended PCB layout and thermal design considerations. It's essential to follow these guidelines to ensure optimal performance, thermal management, and reliability.
The selection of input and output capacitors depends on the specific application requirements, such as ripple current, voltage rating, and ESR. Delta Electronics recommends using capacitors with a voltage rating of at least 1.5 times the input voltage and a ripple current rating of at least 2 times the output current. Additionally, the output capacitor should have a low ESR to minimize voltage ripple.
While the datasheet specifies an operating temperature range of -40°C to 85°C, the maximum allowable ambient temperature depends on the specific application and cooling conditions. In general, it's recommended to derate the module's power rating by 2% per degree Celsius above 70°C to ensure reliable operation.
The PG02S1205A has built-in OVP and UVP circuits, but they can be adjusted or customized using external components. For example, an external voltage supervisor IC can be used to implement UVP, while a zener diode or TVS can be used to implement OVP. Consult the datasheet and application notes for more information.
The recommended startup sequence for the PG02S1205A is to apply the input voltage first, followed by the enable signal. This ensures that the module's internal circuits are properly initialized and configured before the output voltage is enabled.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PG02S1205A Overview

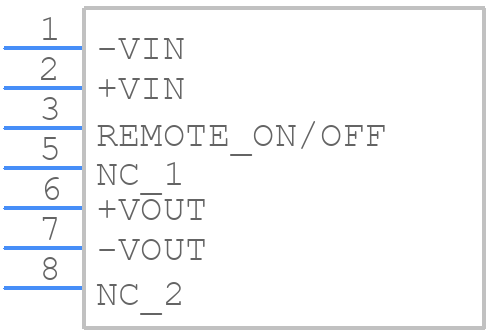

Use the download button to access the PG02S1205A schematic symbol, PCB footprint, and 3D model.
