Delta Electronics provides a reference design guide for the PG02S2405A, which includes recommended PCB layout and thermal design considerations. It's essential to follow these guidelines to ensure optimal performance, thermal management, and EMI reduction.
The selection of input and output capacitors depends on the specific application requirements, such as ripple current, voltage rating, and ESR. Delta Electronics recommends using capacitors with a low ESR and high ripple current rating. A minimum of 22uF input capacitance and 47uF output capacitance is recommended.
The PG02S2405A can tolerate a maximum input voltage deviation of ±10% from the nominal input voltage. Exceeding this deviation may affect the module's performance, reliability, or even cause damage.
The PG02S2405A does not have built-in OVP and UVP. However, you can implement external OVP and UVP circuits using voltage monitoring ICs, such as the TLV7031, and a voltage supervisor, like the TLV803. These circuits can detect voltage deviations and trigger a shutdown or alarm signal to protect the module and downstream components.
The PG02S2405A has an operating temperature range of -40°C to +85°C. However, the module's performance and reliability may degrade if operated at the extreme ends of this range. It's recommended to operate the module within a temperature range of -20°C to +70°C for optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PG02S2405A Overview

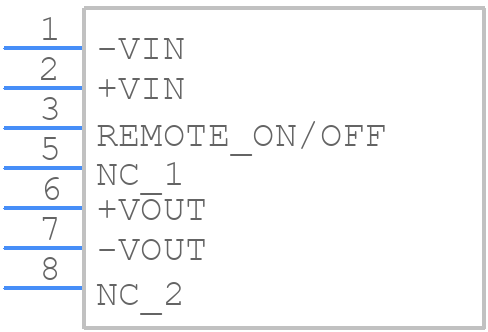

Use the download button to access the PG02S2405A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PG02S,
or try a keyword search, such as Power Supply Modules
