Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for PH-2X10RG
- Part Number PH-2X10RG
- Manufacturer Useconn Electronics
- Pin Count 20
- Part Category Connector
- Package Category Other

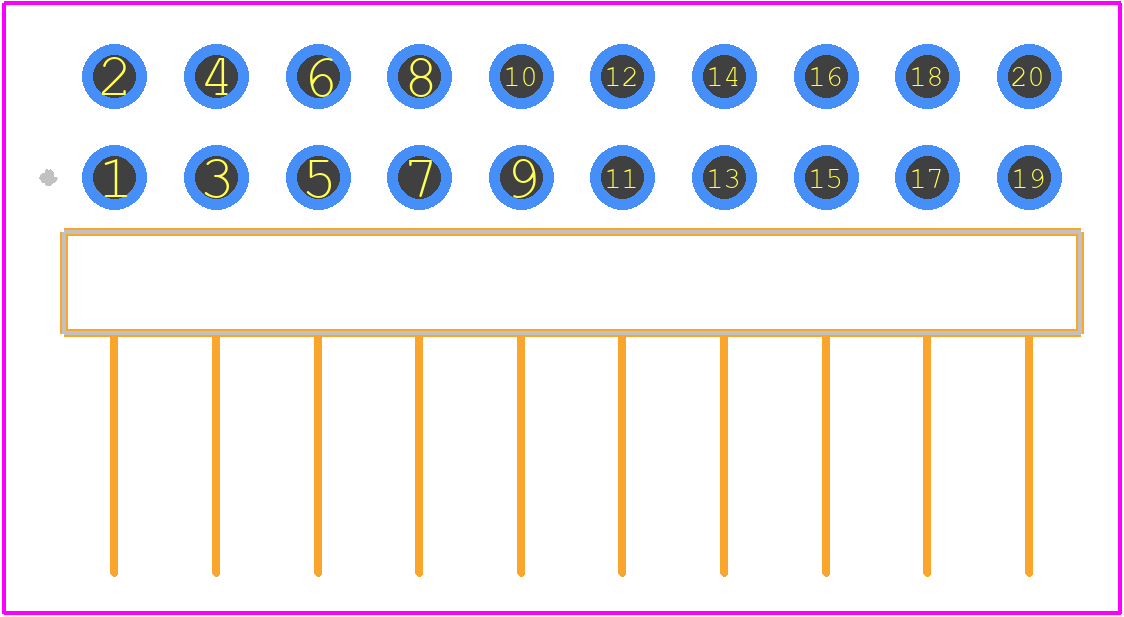

- Footprint Name Other - PH-2X10RG-2
- Released Date May 3, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
PH-2X10RG Details
-
Manufacturer Part Number:
PH-2X10RG
-
Manufacturer:
Useconn Electronics Ltd
Trust Checks
Expert Contribution
System Verified
Community Approved
PH-2X10RG Overview
Use the download button to access the PH-2X10RG schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PH-2X,
or try a keyword search, such as Headers and Edge Type Connectors
