Delta Electronics provides a reference design guide for the PH02S2403A, which includes recommended PCB layout and thermal design considerations. It's essential to follow these guidelines to ensure optimal performance, thermal management, and EMI reduction.
The selection of input and output capacitors depends on the specific application requirements, such as ripple current, voltage rating, and ESR. Delta Electronics recommends using capacitors with a low ESR and high ripple current rating. A minimum of 10uF input capacitance and 22uF output capacitance is recommended.
The PH02S2403A can tolerate a maximum input voltage deviation of ±10% of the nominal input voltage. Exceeding this limit may affect the module's performance, reliability, or even cause damage.
The PH02S2403A does not have built-in OVP and UVP. However, you can implement external OVP and UVP circuits using zener diodes, resistors, and comparators. Delta Electronics recommends using a dedicated IC for OVP and UVP, such as the TLV703 or NCP380, for a more reliable and accurate protection.
The PH02S2403A has an operating temperature range of -40°C to +85°C. However, the module's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and cooling to maintain optimal performance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PH02S2403A Overview

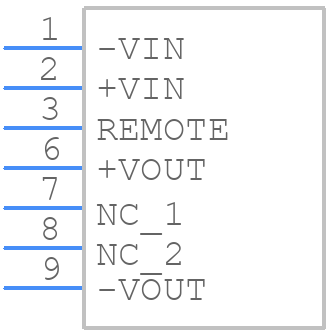

Use the download button to access the PH02S2403A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PH02S,
or try a keyword search, such as Power Supply Modules
