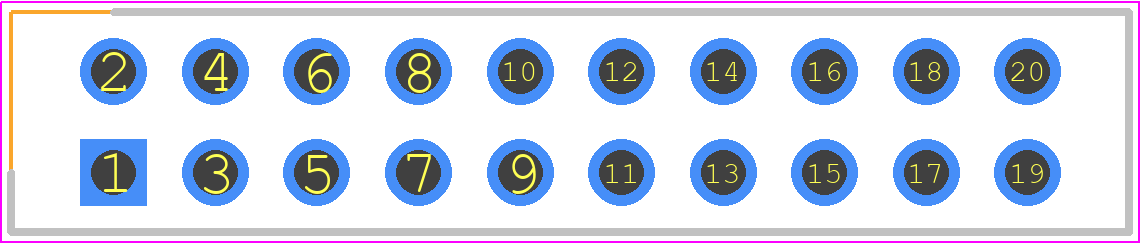

PH2-20-UA - Adam Tech

PH2-20-UA Details

• Manufacturer Part Number:

  PH2-20-UA

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Adam Technologies Inc

• YTEOL:

  9.1

• Body Breadth:

  0.197 inch

• Body Depth:

  0.098 inch

• Body Length:

  1 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  AU ON NI

• Contact Finish Termination:

  GOLD OVER NICKEL

• Contact Gender:

  MALE

• Contact Material:

  BRASS

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  SQ PIN-SKT

• Dielectric Withstanding Voltage:

  1000VAC V

• Filter Feature:

  NO

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYBUTYLENE TEREPHTHALATE

• JESD-609 Code:

  e4

• Mating Contact Pitch:

  0.1 inch

• Mating Contact Row Spacing:

  0.1 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.54 mm

• Plating Thickness:

  FLASH inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  3 A

• Reference Standard:

  UL

• Terminal Length:

  0.12 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  20

• UL Flammability Code:

  94V-0
