PH2RA-12-UA - Adam Tech

Description: CONN HEADER R/A 12POS 2.54MM

Download PH2RA-12-UA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PH2RA-12-UA - Adam Tech - PCB symbol
click to zoom
PCB Footprints

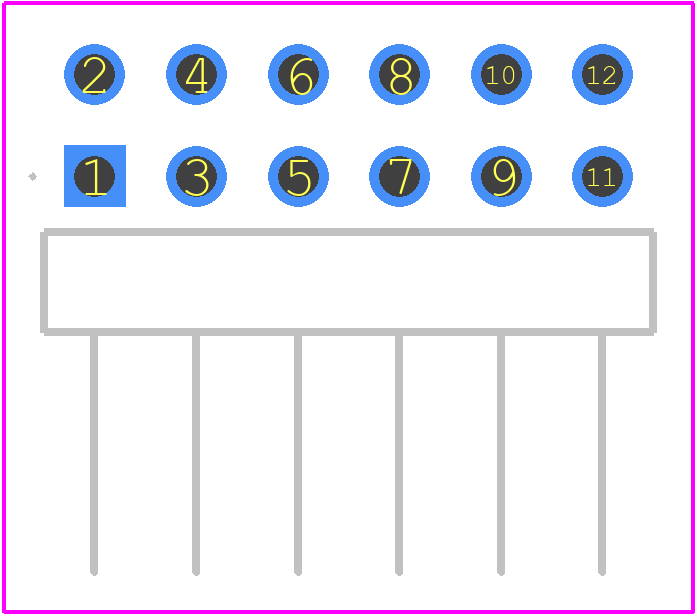

PH2RA-12-UA - Adam Tech PCB footprint - Other - Other - PH2RA-12-UA-2
click to zoom

PH2RA-12-UA Details

  • Manufacturer Part Number:

    PH2RA-12-UA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Adam Technologies Inc

  • YTEOL:

    9.1

  • Body Breadth:

    0.197 inch

  • Body Depth:

    0.253 inch

  • Body Length:

    0.6 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Durability:

    1000 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e4

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    FLASH inch

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL, CSA

  • Terminal Length:

    0.12 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

PH2RA-12-UA Frequently Asked Questions (FAQs)

  • Adam Technologies recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 2 oz copper thickness is recommended for the power traces. Additionally, a thermal pad on the bottom of the device should be connected to a heat sink or a thermal management system.
  • To ensure reliable operation in high-vibration environments, Adam Technologies recommends securing the device to the PCB using a suitable adhesive or mechanical fastening method. Additionally, the PCB should be designed to minimize flexure and vibration transmission to the device.
  • According to Adam Technologies, the maximum allowable voltage transient on the input pins is ±20% of the rated input voltage for a duration of up to 100 ms. Exceeding this limit may cause damage to the device.
  • Yes, the PH2RA-12-UA can be used in a redundant or parallel configuration to achieve higher power ratings or improved reliability. However, Adam Technologies recommends consulting their application notes and seeking guidance from their technical support team to ensure proper implementation.
  • According to Adam Technologies, the typical MTBF for the PH2RA-12-UA is >1 million hours at 40°C ambient temperature, calculated using the Telcordia SR-332 methodology.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PH2RA-12-UA Overview

Use the download button to access the PH2RA-12-UA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PH2RA, or try a keyword search, such as Headers and Edge Type Connectors
