PHA-202+ - Mini-Circuits

Description: RF Amplifier IC CATV, LTE 30MHz ~ 2.7GHz 8-DFN (4.9x6)

Download PHA-202+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

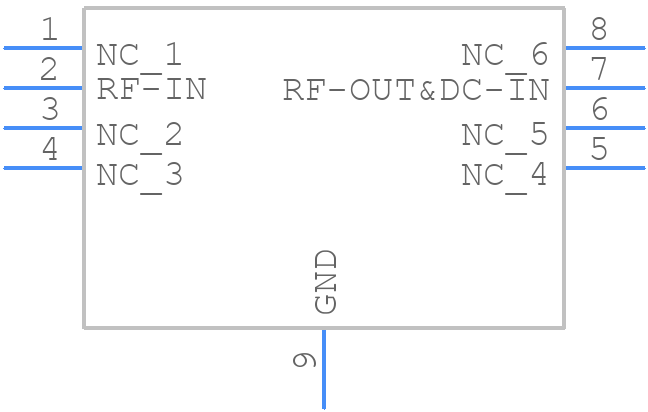

PHA-202+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
PHA-202+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - DL1636 (Thickness 1.02mm)
click to zoom
3D Models
PHA-202+ - Mini-Circuits - 3D model - Small Outline No-lead - DL1636 (Thickness 1.02mm)
click to zoom

PHA-202+ Details

  • Manufacturer Part Number:

    PHA-202+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2017-08-30

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.03

  • Additional Feature:

    LOW NOISE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    13.2 dB

  • Input Power-Max (CW):

    19 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    2700 MHz

  • Operating Frequency-Min:

    30 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Terminal Finish:

    MATTE TIN

PHA-202+ Frequently Asked Questions (FAQs)

  • The PHA-202+ can handle up to +10 dBm of input power without damage, but for optimal performance, it's recommended to keep the input power below +5 dBm.
  • The PHA-202+ has a 50 ohm input and output impedance. To impedance match, use a 50 ohm transmission line or a matching network to ensure maximum power transfer and minimal reflections.
  • The PHA-202+ can operate from -40°C to +85°C, but optimal performance is achieved between 0°C to +50°C.
  • Yes, the PHA-202+ can be used in switching applications, but it's essential to ensure that the input signal is properly filtered and the amplifier is properly biased to prevent oscillations.
  • The PHA-202+ requires a single +12V to +15V power supply. Use a voltage regulator or a well-regulated power supply to ensure stable operation. The recommended bias current is 120 mA.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
