Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for PHDS40G1-RH
- Part Number PHDS40G1-RH
- Manufacturer GTK
- Pin Count 40
- Part Category Integrated Circuit
- Package Category Header, Vertical

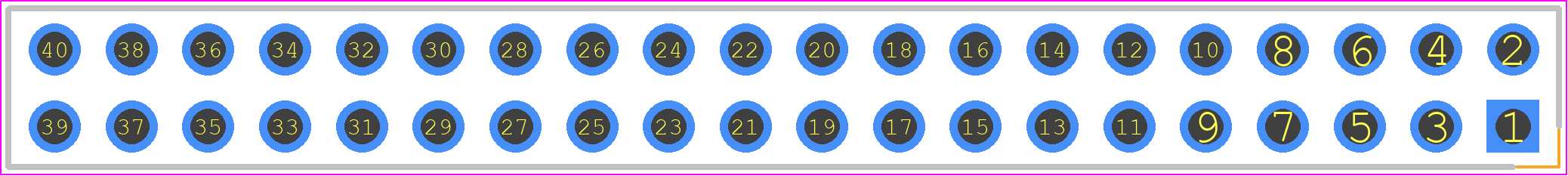

- Footprint Name Header, Vertical - PHDS40G1-RH
- Released Date Apr 27, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
PHDS40G1-RH Details
-
Manufacturer Part Number:
PHDS40G1-RH
-
Manufacturer:
GTK UK Ltd
Trust Checks
Community Provided
System Verified
Community Approved
PHDS40G1-RH Overview
Use the download button to access the PHDS40G1-RH schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PHDS4,
or try a keyword search, such as Headers and Edge Type Connectors
