PHV12-0.5K10000P - Bellnix

Description: High Voltage - Non-Isolated Module DC DC Converter 1 Output 500V 10mA 10.8V - 16.5V Input

Download PHV12-0.5K10000P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

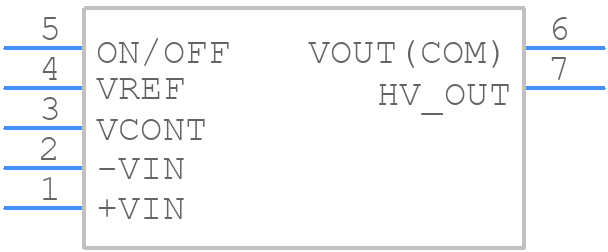

PHV12-0.5K10000P - Bellnix - PCB symbol
click to zoom
PCB Footprints

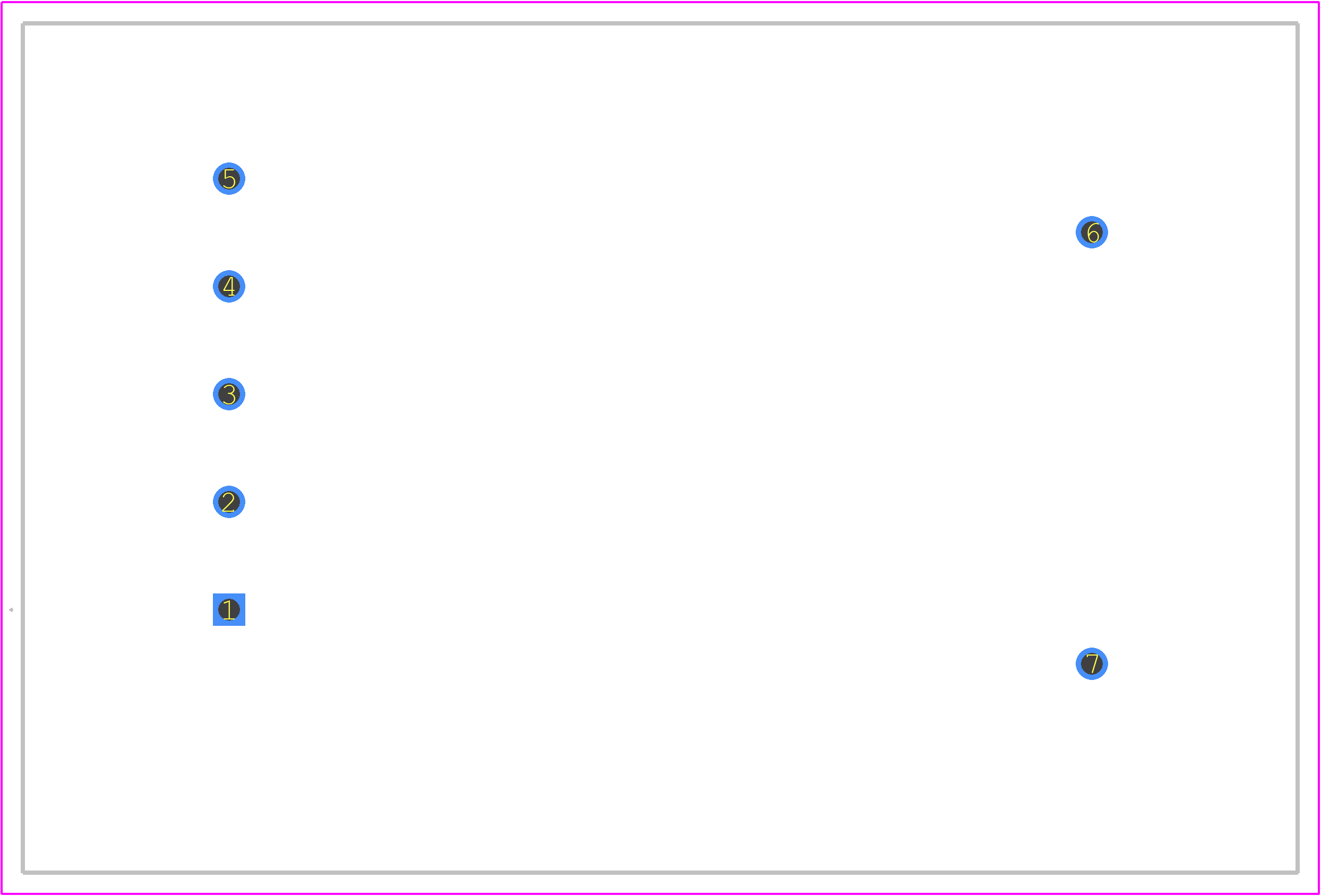

PHV12-0.5K10000P - Bellnix PCB footprint - Other - Other - PHV12-0.5K10000P-2
click to zoom
3D Models
PHV12-0.5K10000P - Bellnix - 3D model - Other - PHV12-0.5K10000P-2
click to zoom

PHV12-0.5K10000P Details

  • Manufacturer Part Number:

    PHV12-0.5K10000P

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    METAL PACKAGE-7/6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Bellnix Co Ltd

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    16.5 V

  • Input Voltage-Min:

    10.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-MDMA-P6

  • Length:

    60 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    40 °C

  • Operating Temperature-Min:

    -10 °C

  • Output Voltage-Max:

    500 V

  • Output Voltage-Nom:

    500 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    20.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    5 W

  • Trim/Adjustable Output:

    YES

  • Width:

    40 mm
