PHV223HLP4520ME4 - Yageo Group

Description: 5200 µF 25 V Aluminum - Polymer Capacitors Radial, Can - SMD 63mOhm 2000 Hrs @ 125°C

Download PHV223HLP4520ME4 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this PHV223HLP4520ME4 model

Email notifications will be applied after download.

Send part feedback

Symbol

PHV223HLP4520ME4 - Yageo Group - PCB symbol

PCB Footprints

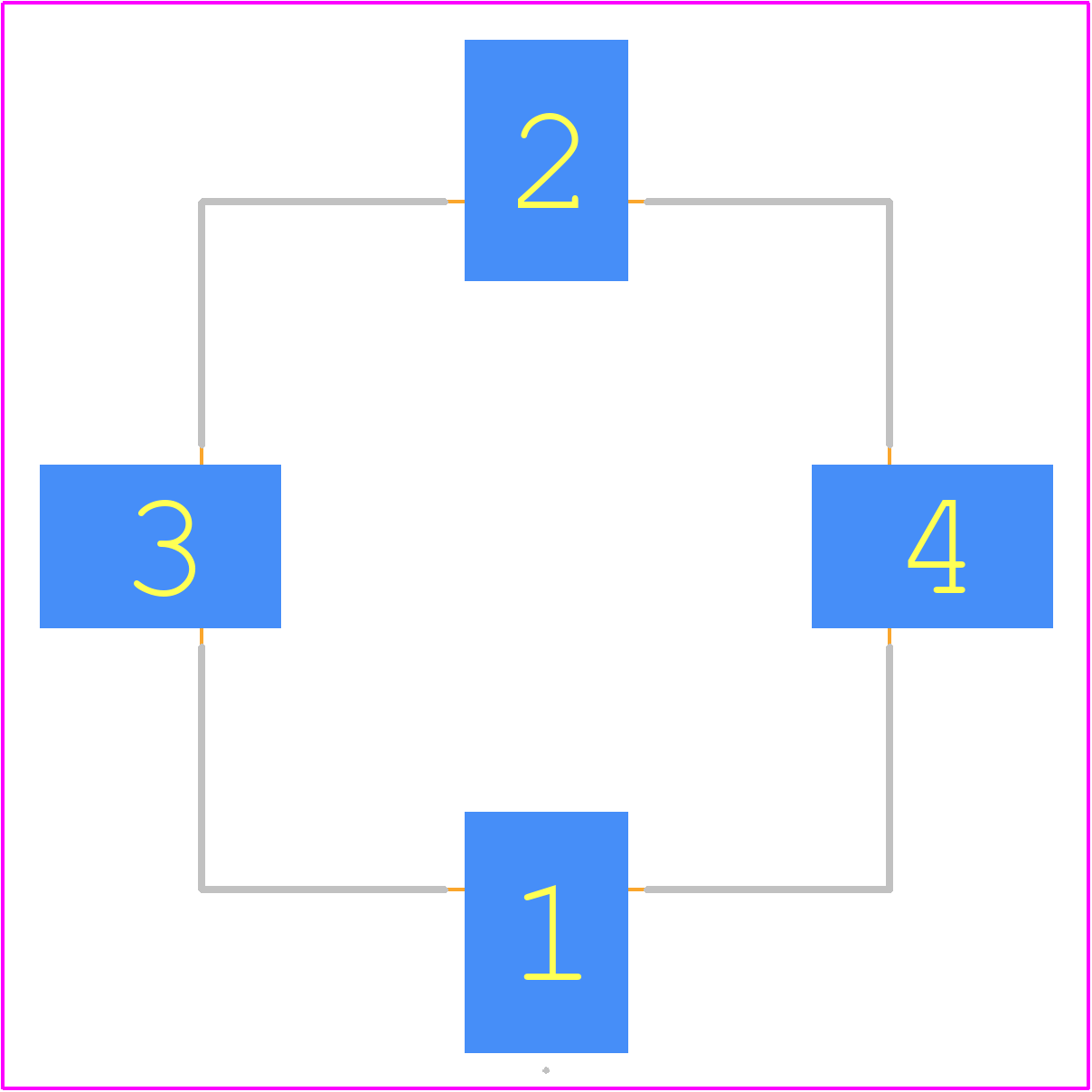

PHV223HLP4520ME4 - Yageo Group PCB footprint - Other - Other - 19x37mm

3D Models

PHV223HLP4520ME4 - Yageo Group - 3D model - Other - 19x37mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for PHV223HLP4520ME4
Part Number PHV223HLP4520ME4
Manufacturer Yageo Group
Pin Count 4
Part Category Capacitor Polarised
Package Category Other
Footprint Name Other - 19x37mm
Released Date Mar 4, 2025
Last Modified Date Mar 17, 2025 3:41 AM UTC
Pinout / Pin List Click Here (Member Only)

PHV223HLP4520ME4 Details

Manufacturer Part Number:
PHV223HLP4520ME4
Manufacturer:
YAGEO Corporation

Trust Checks

Community Provided

System Verified

Community Approved

PHV223HLP4520ME4 Overview

Use the download button to access the PHV223HLP4520ME4 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PHV22, or try a keyword search, such as Fixed Resistors
