PI3110-01-HVIZ footprint, schematic symbol and 3D model by VICOR

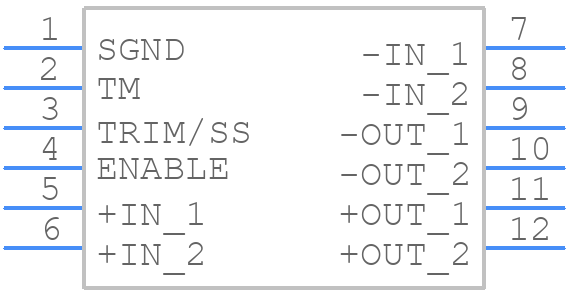

Symbol

click to zoom

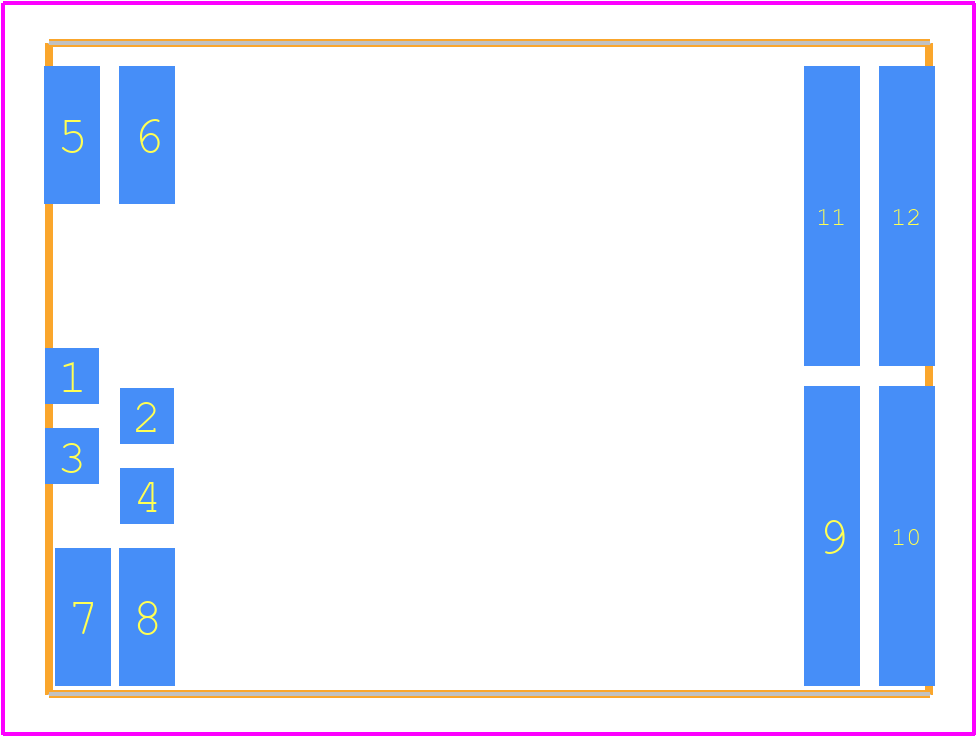

PCB Footprints

PI3110-01-HVIZ - VICOR PCB footprint - Other - Other - PI3110-01-HVIZ-1

click to zoom

3D Models

PI3110-01-HVIZ - VICOR - 3D model - Other - PI3110-01-HVIZ-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PI3110-01-HVIZ
Part Number PI3110-01-HVIZ
Manufacturer VICOR
Pin Count 12
Part Category Power Supply
Package Category Other
Footprint Name Other - PI3110-01-HVIZ-1
Released Date Jun 18, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PI3110-01-HVIZ Details

Manufacturer Part Number:
PI3110-01-HVIZ
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
Module-28
ECCN Code:
EAR99
Manufacturer:
Vicor Corporation
YTEOL:
0
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
57 V
Input Voltage-Min:
41 V
Input Voltage-Nom:
52 V
JESD-30 Code:
R-XDMA-X28
Length:
22 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
28
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
19.8 V
Output Voltage-Min:
16.2 V
Output Voltage-Nom:
18 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
6.98 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Form:
UNSPECIFIED
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
60 W
Trim/Adjustable Output:
YES
Width:
16.5 mm

PI3110-01-HVIZ Frequently Asked Questions (FAQs)

Vicor provides a reference design and layout guidelines in their application notes and design guides. It's recommended to follow these guidelines to ensure optimal thermal performance and minimize noise. Additionally, a thermal pad and heat sink may be required to maintain the device within its operating temperature range.
The PI3110-01-HVIZ has a wide input voltage range, but it's essential to ensure the input voltage is within the specified limits (36-60V) to maintain efficiency and prevent damage. Use voltage regulators or filters to condition the input voltage and ensure it's within the recommended range.
The PI3110-01-HVIZ has a derating curve for output current vs. ambient temperature. For high ambient temperatures, the output current may need to be derated to prevent overheating. Consult the datasheet and application notes for specific derating guidelines.
The PI3110-01-HVIZ has built-in overcurrent protection, but it's recommended to implement additional fault monitoring and protection circuitry to ensure system reliability. Use external components such as current sense resistors, voltage supervisors, and fault detection ICs to monitor the output voltage and current.
The PI3110-01-HVIZ requires input and output capacitance to ensure stability and performance. Follow the recommended capacitance values and types specified in the datasheet and application notes to ensure optimal performance and minimize noise.
