PI3301-00-LGIZ - VICOR

PI3301-00-LGIZ Details

• Manufacturer Part Number:

  PI3301-00-LGIZ

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  28 Weeks

• Manufacturer:

  Vicor Corporation

• YTEOL:

  7.7

• Additional Feature:

  ALSO OPERATES IN ADJUSTABLE MODE FROM 2.3V TO 4.1V

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  8 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-XBGA-B123

• Length:

  14 mm

• Number of Functions:

  1

• Number of Terminals:

  123

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  10 A

• Output Voltage-Max:

  4.1 V

• Output Voltage-Min:

  2.3 V

• Output Voltage-Nom:

  3.3 V

• Package Body Material:

  UNSPECIFIED

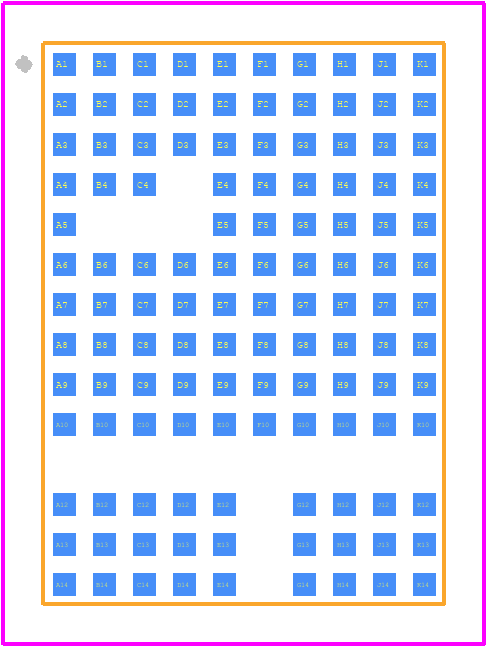

• Package Code:

  LGA

• Package Equivalence Code:

  LGA123,10X14,40

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY

• Seated Height-Max:

  2.62 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  650 kHz

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  BUTT

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Width:

  10 mm
