ALSO OPERATES IN ADJUSTABLE MODE FROM 3.3V TO 6.5V
Analog IC - Other Type:
SWITCHING REGULATOR
Input Voltage-Max:
36 V
Input Voltage-Min:
8 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XBGA-B123
Length:
14 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
123
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
10 A
Output Voltage-Max:
6.5 V
Output Voltage-Min:
3.3 V
Output Voltage-Nom:
5 V
Package Body Material:
UNSPECIFIED
Package Code:
LGA
Package Equivalence Code:
LGA123,10X14,40
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY
Peak Reflow Temperature (Cel):
245
Seated Height-Max:
2.62 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
1000 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Form:
BUTT
Terminal Pitch:
1 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
20
Width:
10 mm
PI3302-00-LGIZ Frequently Asked Questions (FAQs)
The PI3302-00-LGIZ requires a well-designed PCB layout with adequate thermal management to ensure optimal performance. Vicor recommends a 4-layer PCB with a solid ground plane, and thermal vias to dissipate heat. A thermal interface material (TIM) should be used between the module and the heat sink.
To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit to limit inrush current, and a shutdown circuit to prevent voltage spikes. Additionally, a input undervoltage lockout (UVLO) circuit can be used to prevent the module from operating outside of its specified input voltage range.
The PI3302-00-LGIZ is designed to meet CISPR 22 Class B EMI standards. To minimize EMI and RFI, Vicor recommends using a shielded enclosure, keeping the module away from sensitive circuits, and using EMI filters on the input and output lines.
The PI3302-00-LGIZ has a built-in temperature monitoring circuit that can be used to monitor the module's temperature. Vicor recommends using a thermistor or thermocouple to monitor the temperature, and a temperature controller to adjust the module's output voltage or shut down the module in case of overheating.
Vicor provides reliability data for the PI3302-00-LGIZ, including MTBF (Mean Time Between Failures) and FIT (Failures in Time) rates. The module is designed to meet high reliability standards, with a MTBF of >1 million hours at 40°C.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI3302-00-LGIZ Overview

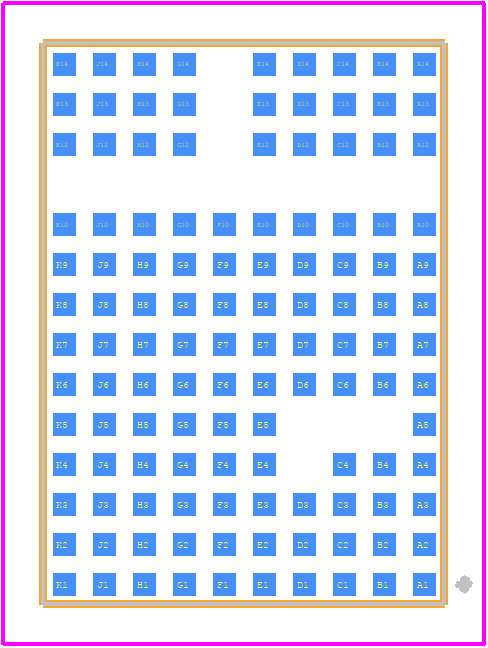

Use the download button to access the PI3302-00-LGIZ schematic symbol, PCB footprint, and 3D model.
