PI3303-00-LGIZ footprint, schematic symbol and 3D model by VICOR

Symbol

click to zoom

PCB Footprints

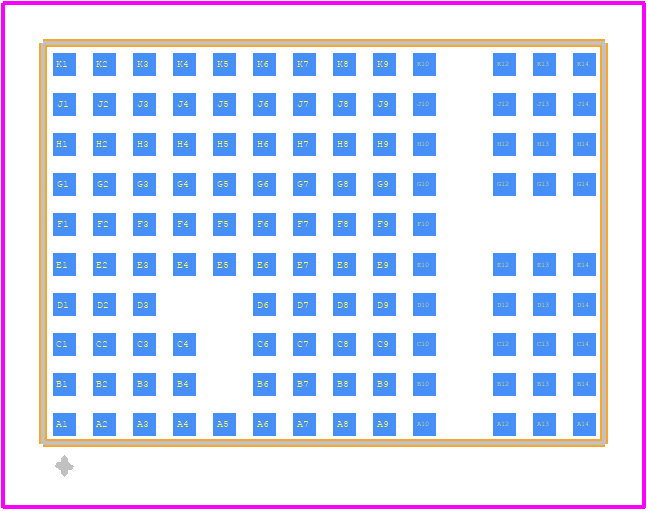

PI3303-00-LGIZ - VICOR PCB footprint - Other - Other - PI3303-00-LGIZ-1

click to zoom

3D Models

PI3303-00-LGIZ - VICOR - 3D model - Other - PI3303-00-LGIZ-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PI3303-00-LGIZ
Part Number PI3303-00-LGIZ
Manufacturer VICOR
Pin Count 123
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - PI3303-00-LGIZ-1
Released Date Dec 26, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PI3303-00-LGIZ Details

Manufacturer Part Number:
PI3303-00-LGIZ
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Thailand
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
28 Weeks
Manufacturer:
Vicor Corporation
YTEOL:
7
Additional Feature:
ALSO OPERATES IN ADJUSTABLE MODE FROM 6.5V TO 13V
Analog IC - Other Type:
SWITCHING REGULATOR
Input Voltage-Max:
36 V
Input Voltage-Min:
17.4 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XBGA-B123
Length:
14 mm
Number of Functions:
1
Number of Terminals:
123
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
8 A
Output Voltage-Max:
13 V
Output Voltage-Min:
6.5 V
Output Voltage-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
LGA
Package Equivalence Code:
LGA123,10X14,40
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY
Seated Height-Max:
2.62 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
1400 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Form:
BUTT
Terminal Pitch:
1 mm
Terminal Position:
BOTTOM
Width:
10 mm

PI3303-00-LGIZ Frequently Asked Questions (FAQs)

Vicor recommends a 2-layer or 4-layer PCB with a solid ground plane and thermal vias to the bottom layer to ensure optimal thermal performance. A minimum of 2 oz copper thickness is recommended.
To ensure reliable start-up, Vicor recommends a soft-start circuit or a ramp-up of the input voltage to prevent inrush currents. Additionally, a minimum input capacitance of 10uF is recommended.
The maximum allowed input voltage ripple for the PI3303-00-LGIZ is 10% of the nominal input voltage. Exceeding this limit may affect the converter's performance and reliability.
The PI3303-00-LGIZ is rated for operation up to 85°C ambient temperature. However, Vicor recommends derating the output power by 1% per degree Celsius above 70°C to ensure reliable operation.
Vicor recommends a pi-filter configuration with a series inductor and shunt capacitors to minimize input ripple and noise. The recommended values are L = 1uH, C1 = 10uF, and C2 = 10uF.
