The PI3303-20-LGIZ requires a 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink or a thermal interface material. Vicor recommends a specific layout and thermal management guidelines in their application notes.
To ensure reliability, follow Vicor's recommended operating conditions, derating, and thermal management guidelines. Also, ensure proper handling and storage of the module, and avoid exceeding the maximum ratings.
The PI3303-20-LGIZ is designed to meet CISPR 22 and FCC Part 15 Class B emissions standards. However, additional EMI filtering and shielding may be required depending on the specific application and environment.
Yes, the PI3303-20-LGIZ can be used in redundant or parallel configurations, but it requires careful design and implementation to ensure proper operation and fault tolerance. Consult Vicor's application notes and technical support for guidance.
Common failure modes include overheating, overvoltage, and overcurrent. To mitigate these, ensure proper thermal management, follow the recommended operating conditions, and implement overvoltage and overcurrent protection circuits.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI3303-20-LGIZ Overview

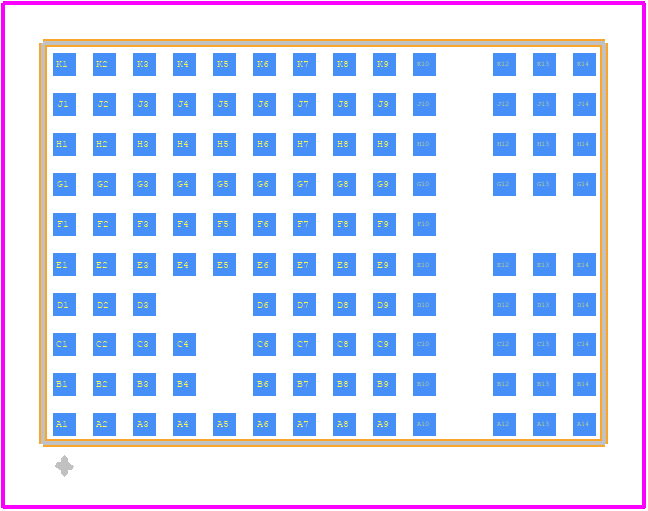

Use the download button to access the PI3303-20-LGIZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI330,
or try a keyword search, such as Switching Regulator or Controllers
