PI3305-00-LGIZ footprint, schematic symbol and 3D model by VICOR

Symbol

click to zoom

PCB Footprints

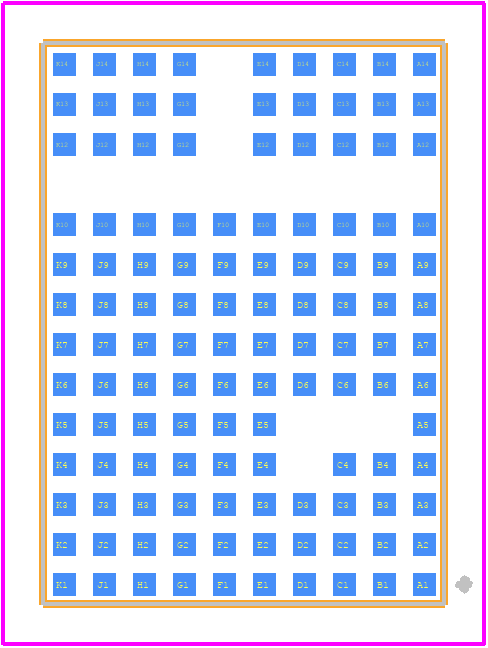

PI3305-00-LGIZ - VICOR PCB footprint - Other - Other - PI3305-00-LGIZ

click to zoom

3D Models

PI3305-00-LGIZ - VICOR - 3D model - Other - PI3305-00-LGIZ

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PI3305-00-LGIZ
Part Number PI3305-00-LGIZ
Manufacturer VICOR
Pin Count 123
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - PI3305-00-LGIZ
Released Date Mar 27, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PI3305-00-LGIZ Details

Manufacturer Part Number:
PI3305-00-LGIZ
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Vicor Corporation
YTEOL:
0
Additional Feature:
ALSO OPERATES IN ADJUSTABLE MODE FROM 10V TO 16V
Analog IC - Other Type:
SWITCHING REGULATOR
Input Voltage-Max:
36 V
Input Voltage-Min:
20.4 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XBGA-B123
Length:
14 mm
Number of Functions:
1
Number of Terminals:
123
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
8 A
Output Voltage-Max:
16 V
Output Voltage-Min:
10 V
Output Voltage-Nom:
15 V
Package Body Material:
UNSPECIFIED
Package Code:
LGA
Package Equivalence Code:
LGA123,10X14,40
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY
Seated Height-Max:
2.62 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
1500 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Form:
BUTT
Terminal Pitch:
1 mm
Terminal Position:
BOTTOM
Width:
10 mm

PI3305-00-LGIZ Frequently Asked Questions (FAQs)

Vicor recommends a 2-layer or 4-layer PCB with a solid ground plane and thermal vias to the bottom layer to ensure optimal thermal performance. A minimum of 2 oz copper thickness is recommended.
To ensure reliable start-up, Vicor recommends a soft-start circuit or a ramp-up of the input voltage to prevent inrush currents. Additionally, a minimum input capacitance of 10uF is recommended.
The maximum allowed input voltage ripple for the PI3305-00-LGIZ is 10% of the nominal input voltage. Exceeding this limit may affect the converter's performance and reliability.
The PI3305-00-LGIZ is rated for operation up to 85°C ambient temperature. However, Vicor recommends derating the output power by 1% per degree Celsius above 70°C to ensure reliable operation.
Vicor recommends checking the input voltage, output voltage, and output current to identify the source of the issue. Additionally, checking the thermal performance and ensuring proper PCB layout can help troubleshoot issues.
