PI3305-20-LGIZ - VICOR

Description: Switching Voltage Regulators 36Vin to 15Vout/8A Cool-Pwr REG

Download PI3305-20-LGIZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PI3305-20-LGIZ - VICOR - PCB symbol
click to zoom

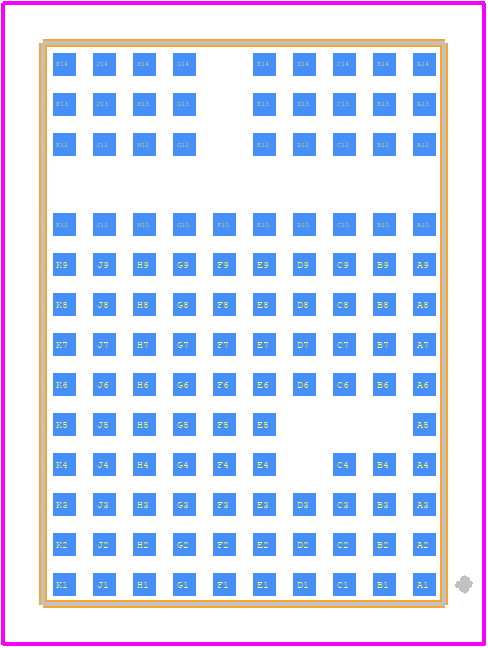

PCB Footprints
PI3305-20-LGIZ - VICOR PCB footprint - Other - Other - PI3302-00-LGIZ-2_FFW
click to zoom
3D Models
PI3305-20-LGIZ - VICOR - 3D model - Other - PI3302-00-LGIZ-2_FFW
click to zoom

PI3305-20-LGIZ Details

  • Manufacturer Part Number:

    PI3305-20-LGIZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LGA-123

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 10V TO 16V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    20.4 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XBGA-N123

  • Length:

    14 mm

  • Number of Functions:

    1

  • Number of Terminals:

    123

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    8 A

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    LGA

  • Package Equivalence Code:

    LGA123,10X14,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    2.62 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1500 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    10 mm

PI3305-20-LGIZ Frequently Asked Questions (FAQs)

  • Vicor provides a reference design and layout guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure optimal thermal performance and minimize electromagnetic interference (EMI).
  • Vicor recommends using a soft-start circuit to limit the inrush current during start-up, and a voltage supervisor to ensure the converter is fully enabled before applying the input voltage. Additionally, a proper shutdown sequence should be implemented to prevent damage to the converter.
  • The maximum allowed capacitance on the output of the PI3305-20-LGIZ is 220uF. Exceeding this value may cause instability or oscillation in the converter.
  • The PI3305-20-LGIZ is rated for operation up to 85°C ambient temperature. However, Vicor recommends derating the output power and using additional thermal management measures, such as heat sinks or fans, to ensure reliable operation in high-temperature environments.
  • Vicor provides troubleshooting guides and application notes that outline common issues and their solutions. Additionally, Vicor's technical support team can provide assistance with troubleshooting and debugging.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PI3305-20-LGIZ Overview

Use the download button to access the PI3305-20-LGIZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI330, or try a keyword search, such as Switching Regulator or Controllers
