PI3523-00-LGIZ - VICOR

PI3523-00-LGIZ Details

• Manufacturer Part Number:

  PI3523-00-LGIZ

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

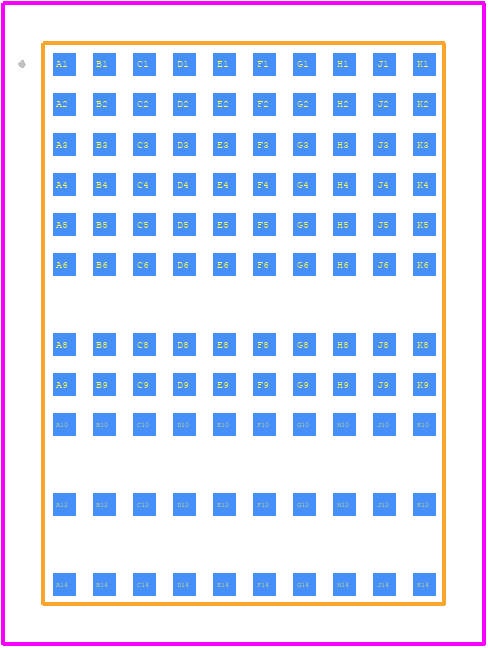

• Package Description:

  LGA-140/110

• Country Of Origin:

  Thailand, USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2017-12-13

• Manufacturer:

  Vicor Corporation

• YTEOL:

  7

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Input Voltage-Max:

  60 V

• Input Voltage-Min:

  30 V

• Input Voltage-Nom:

  48 V

• JESD-30 Code:

  R-XBGA-N110

• Length:

  14 mm

• Number of Functions:

  1

• Number of Terminals:

  110

• Operating Temperature-Max:

  120 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  22 A

• Output Voltage-Max:

  4 V

• Output Voltage-Min:

  2.2 V

• Output Voltage-Nom:

  3.3 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  LGA

• Package Equivalence Code:

  LGA110,10X14,40

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY

• Seated Height-Max:

  2.63 mm

• Supply Voltage-Nom (Vsup):

  48 V

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  530 kHz

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Width:

  10 mm
