Vicor recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A minimum of 2 oz copper thickness is recommended. Additionally, a thermal interface material (TIM) should be used between the module and the heat sink.
To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit to limit inrush current, and a voltage supervisor to monitor the input voltage and ensure it is within the recommended range before enabling the module.
The maximum allowable capacitance on the output of the PI3526-00-BGIZ is 2200uF. Exceeding this value may cause instability or oscillation in the module.
Yes, the PI3526-00-BGIZ can be used in a redundant or parallel configuration, but Vicor recommends using a dedicated ORing diode or power switch to isolate the modules and prevent back-feeding.
Vicor recommends a fuse rating of 5A to 10A, and a slow-blow or time-delay fuse type to accommodate the inrush current of the module.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI3526-00-BGIZ Overview

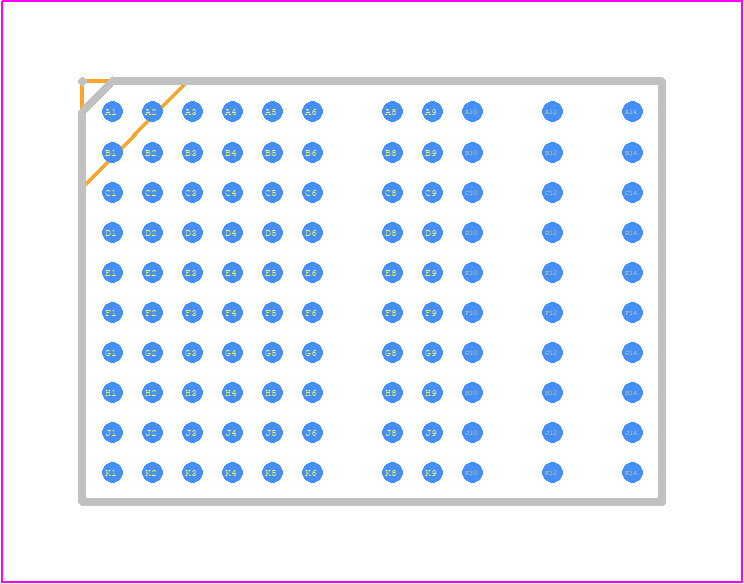

Use the download button to access the PI3526-00-BGIZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI352,
or try a keyword search, such as Switching Regulator or Controllers
